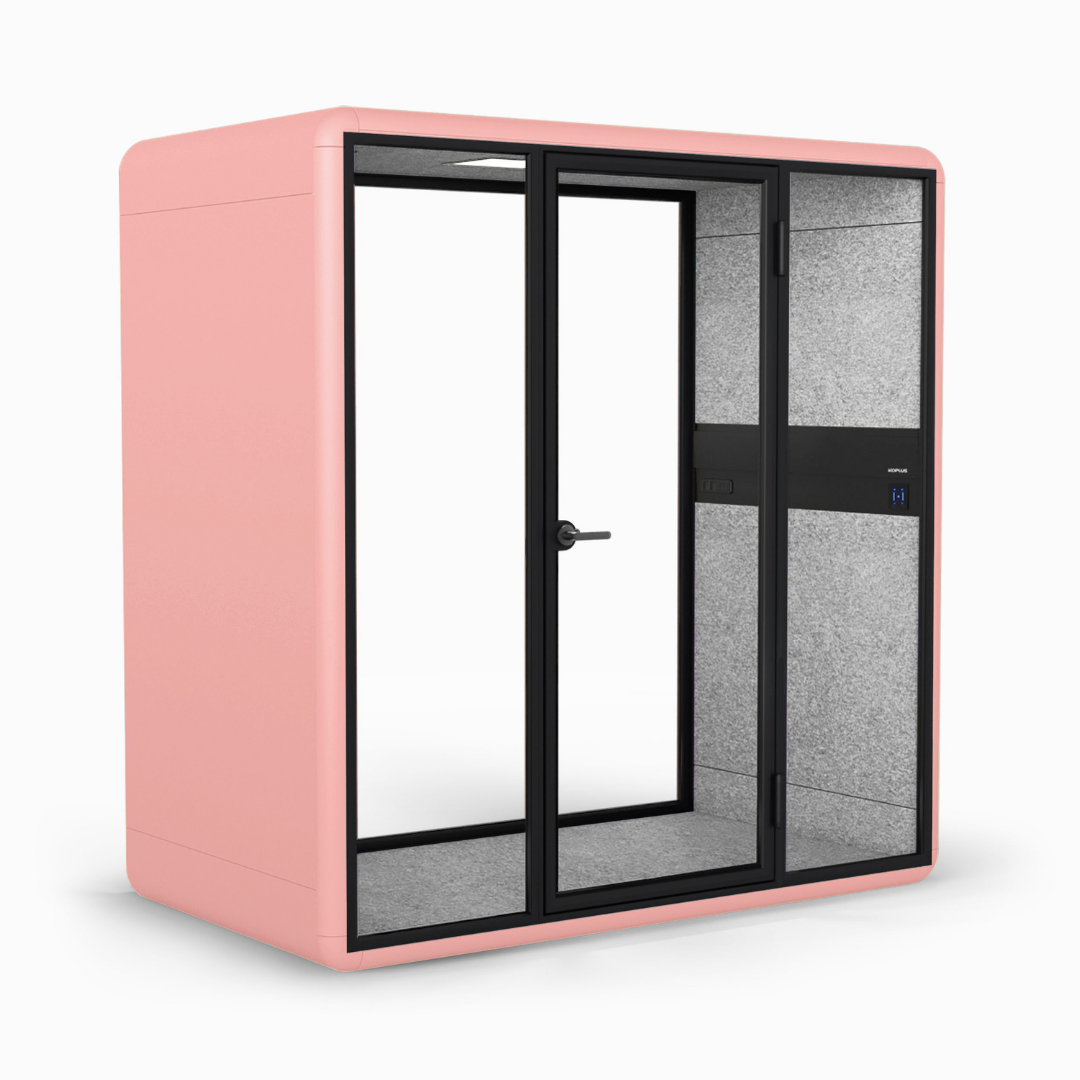

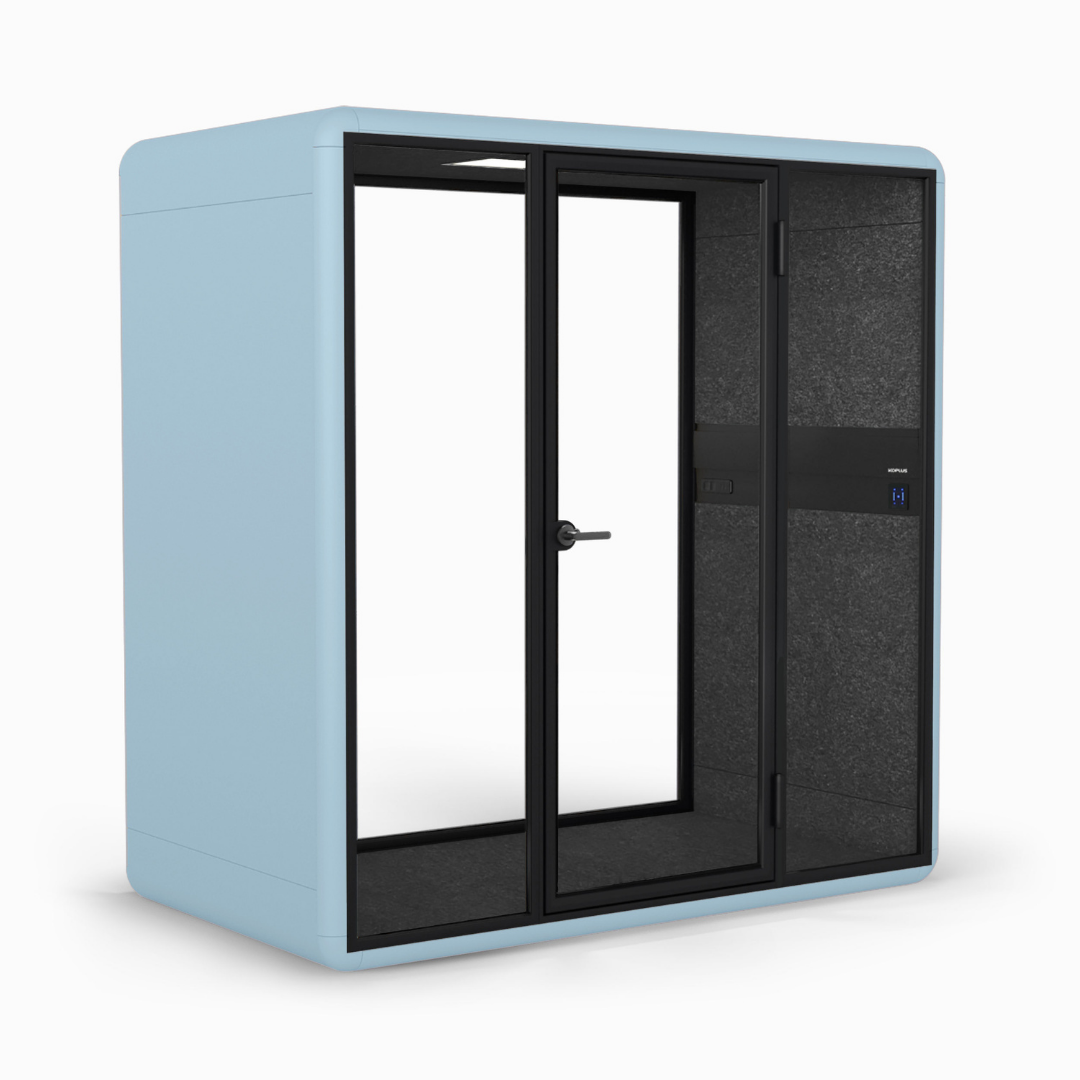

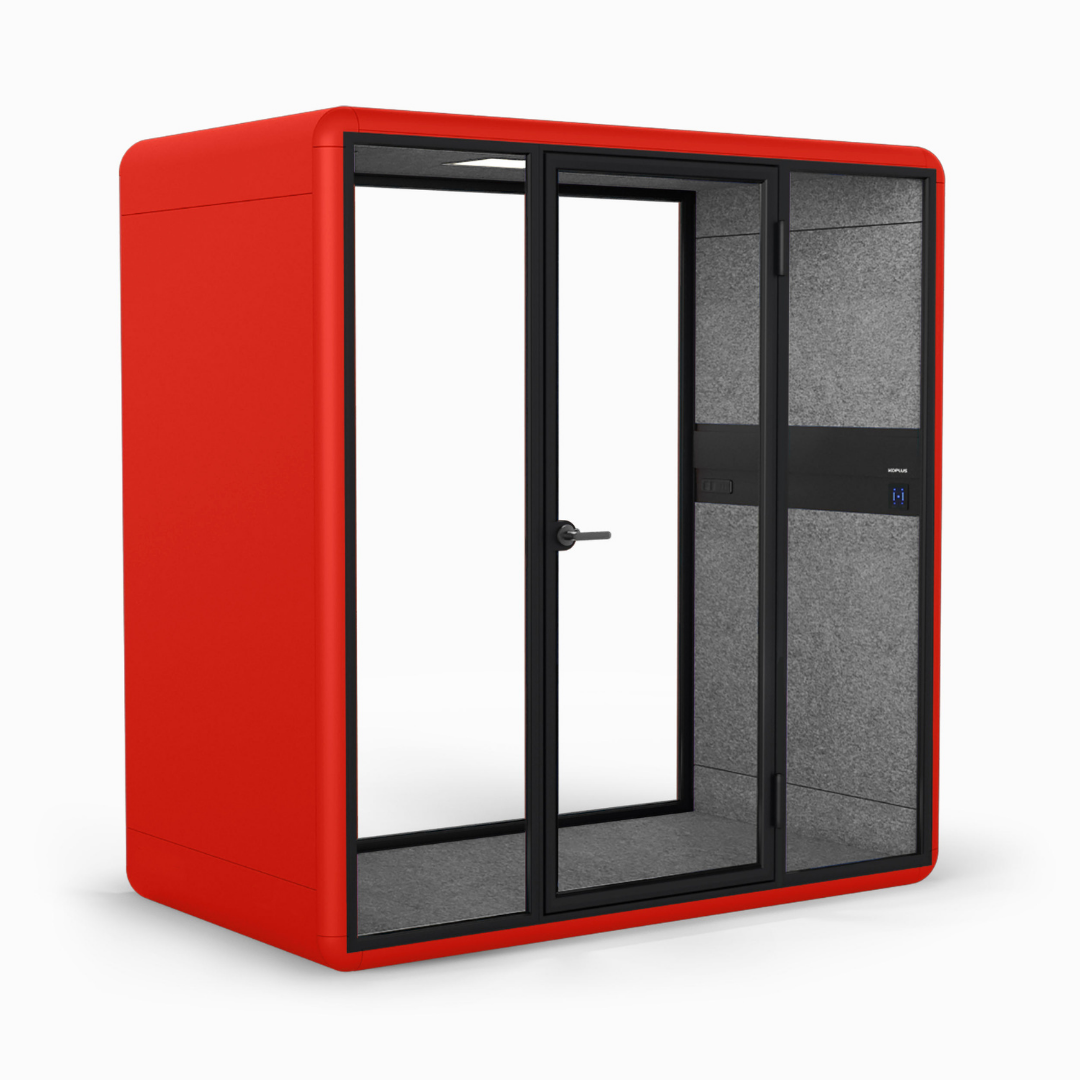

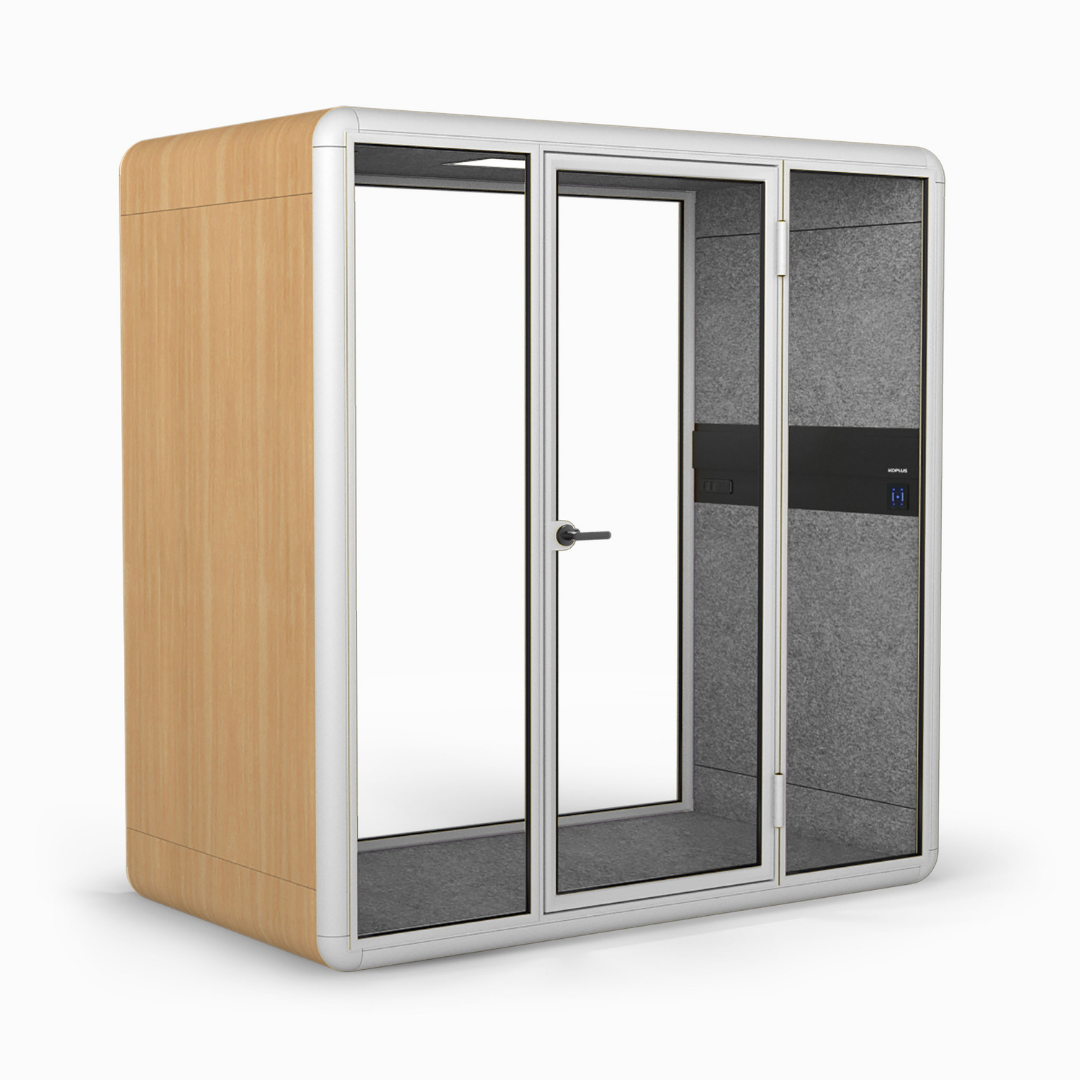

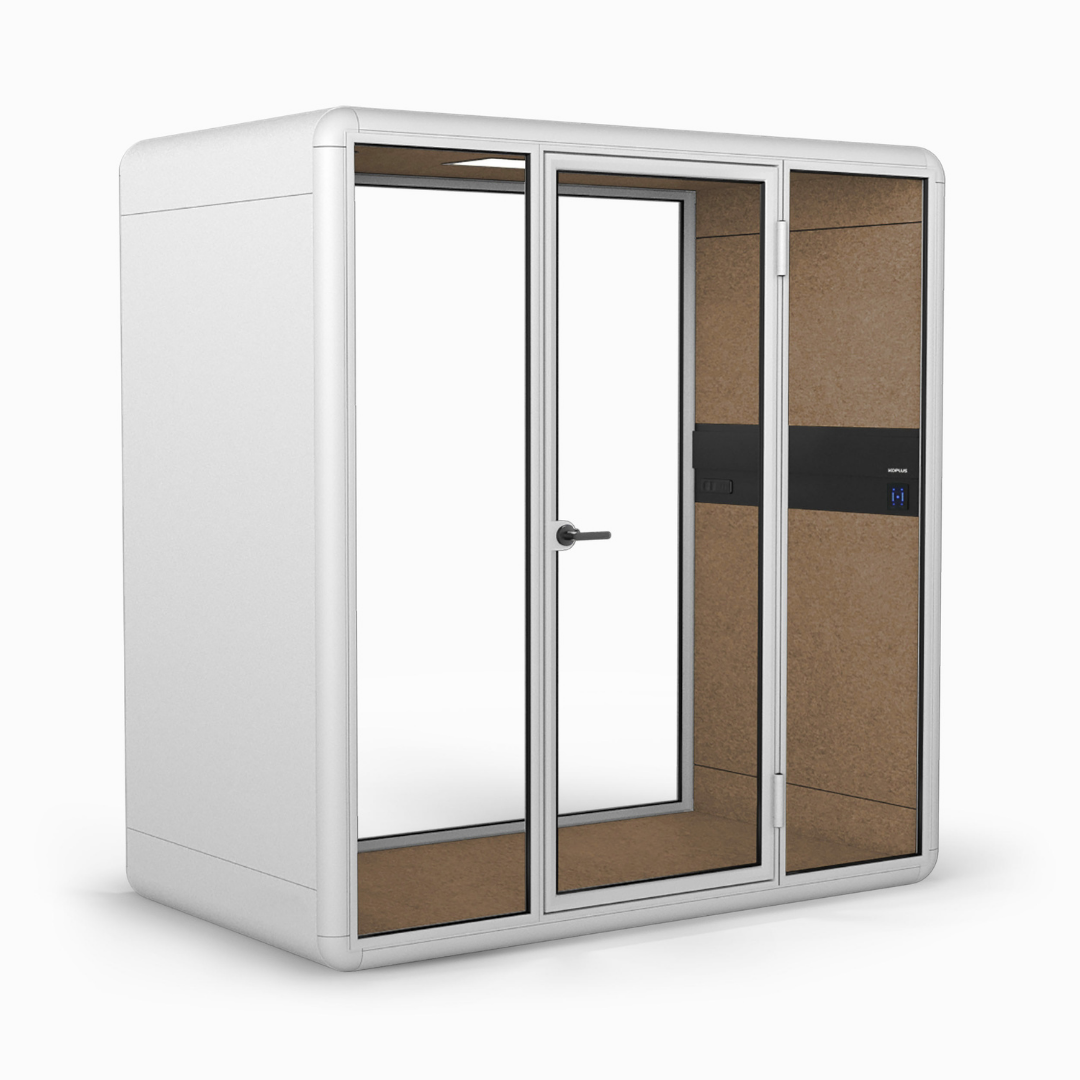

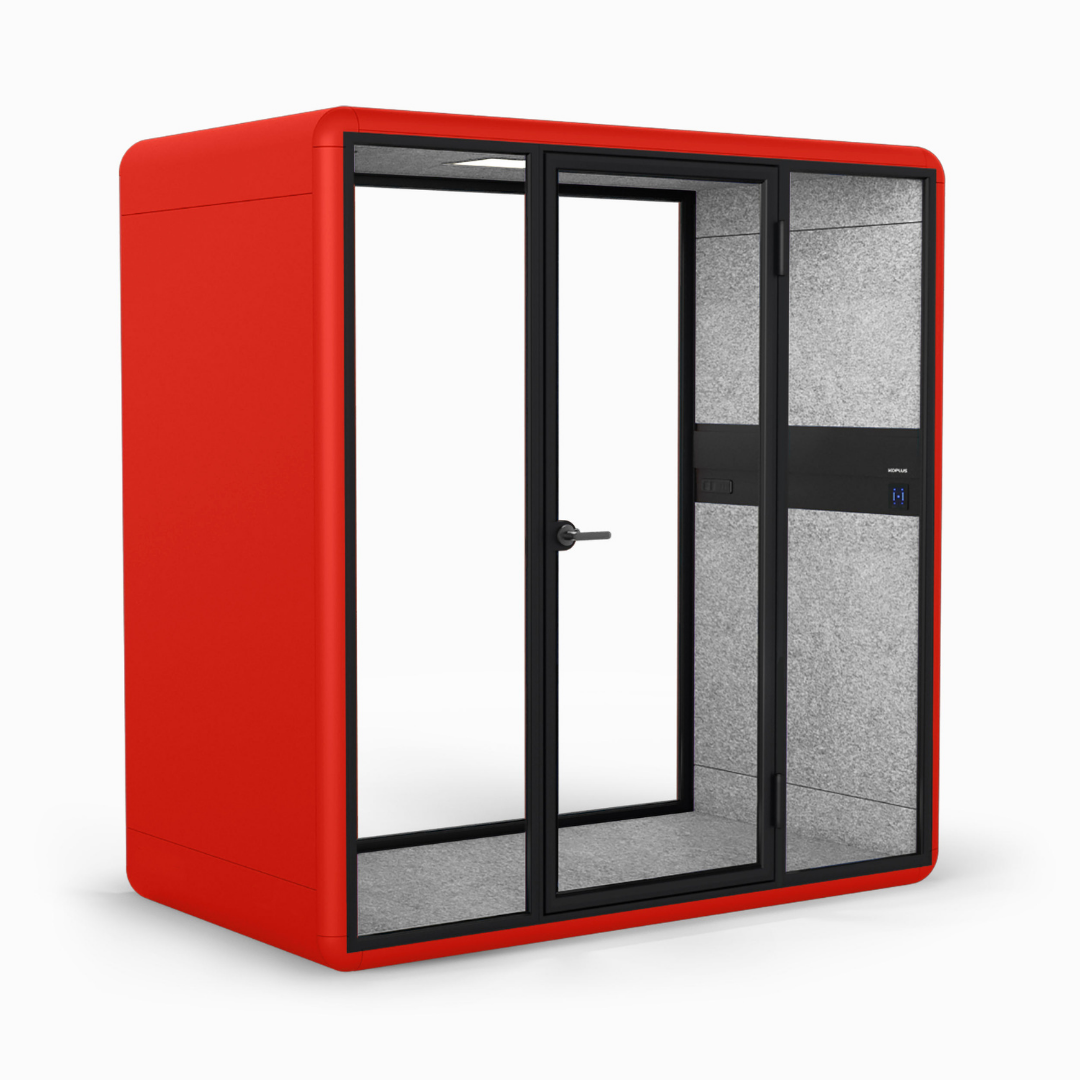

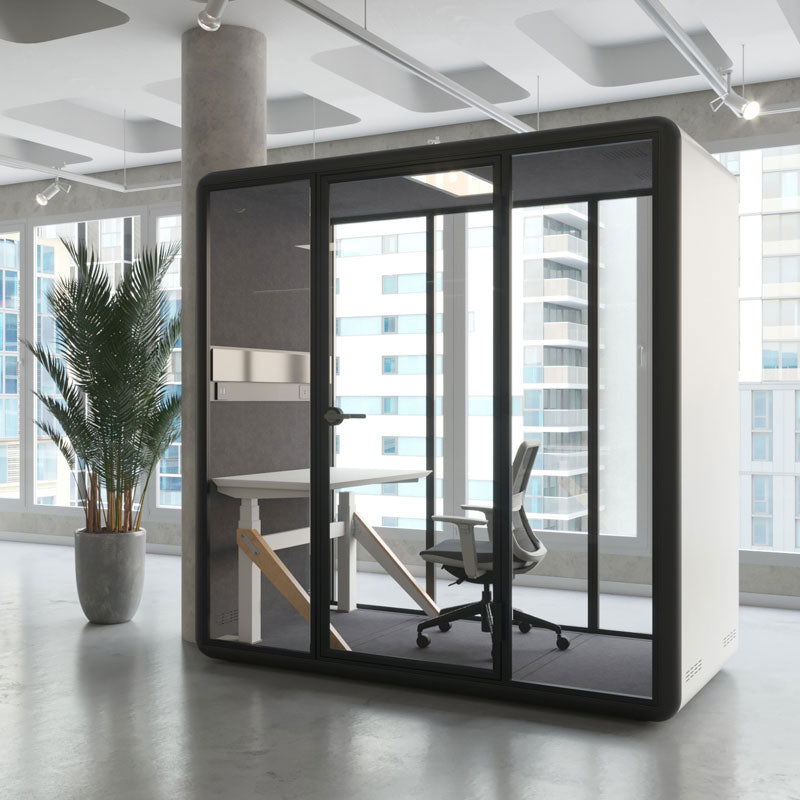

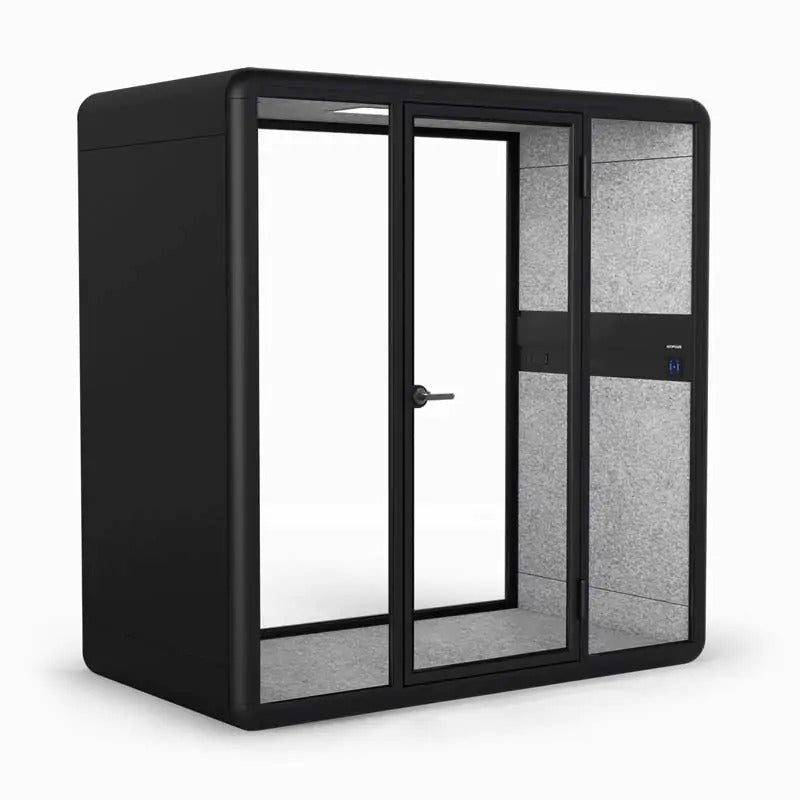

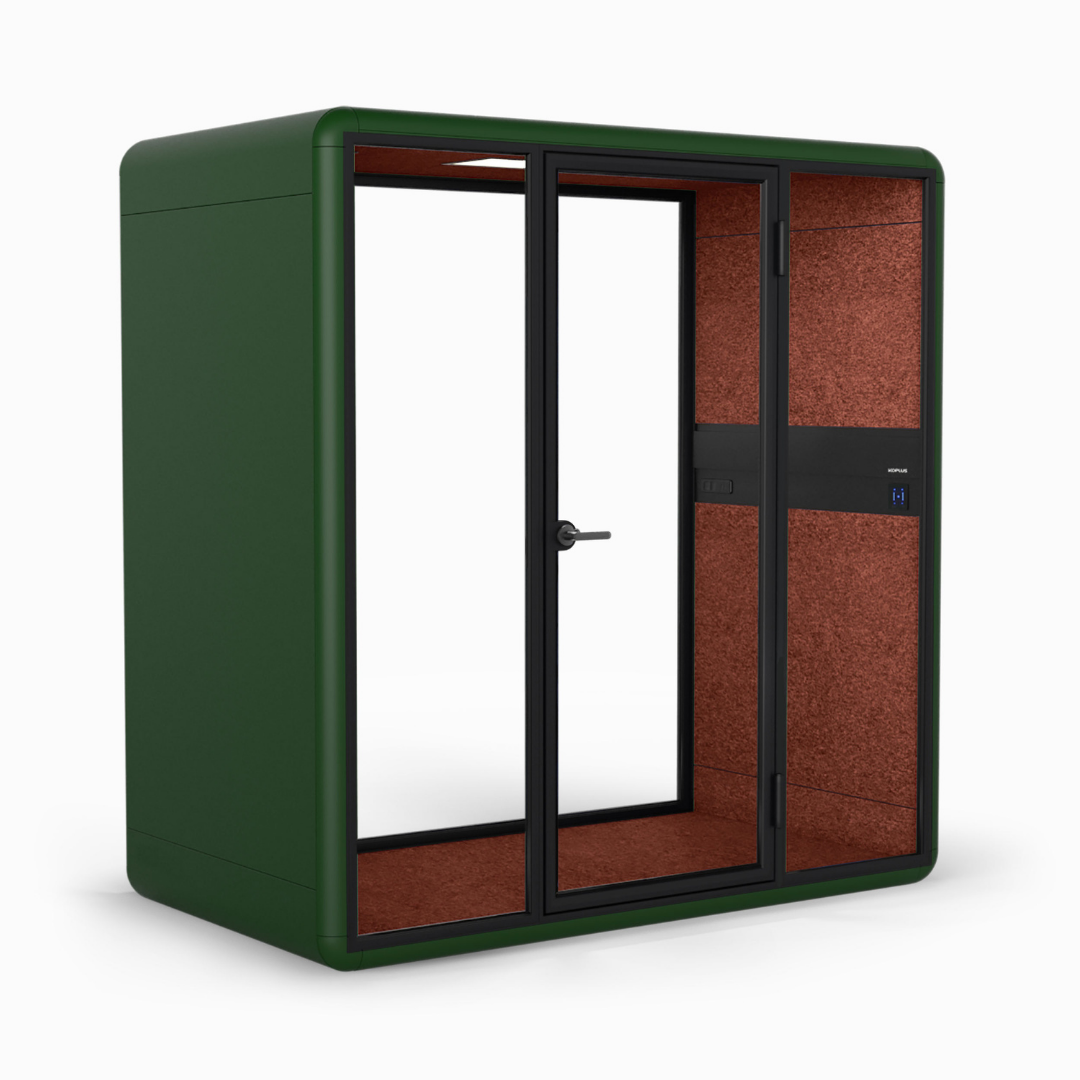

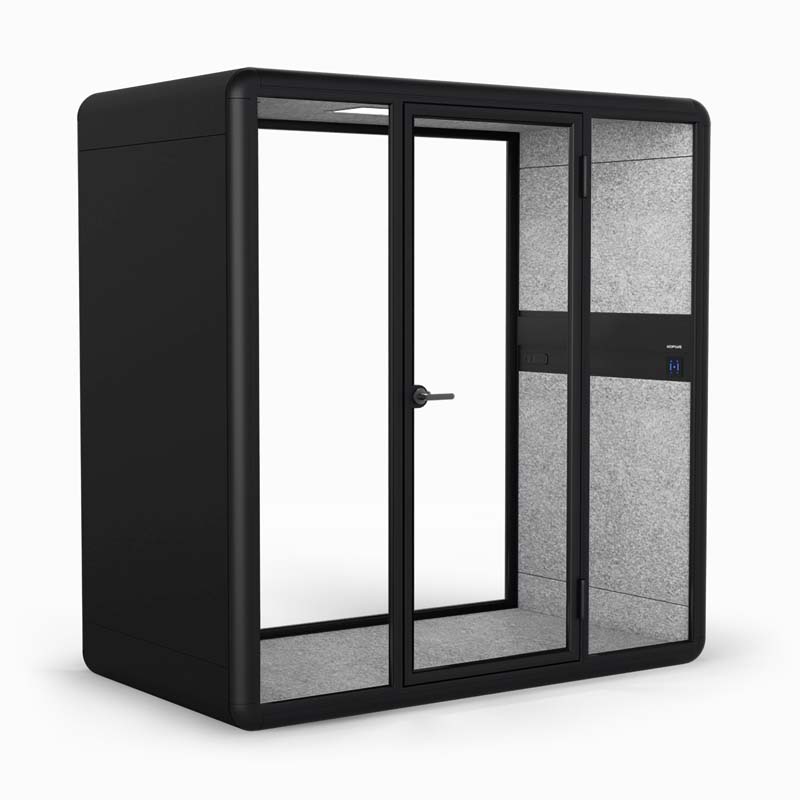

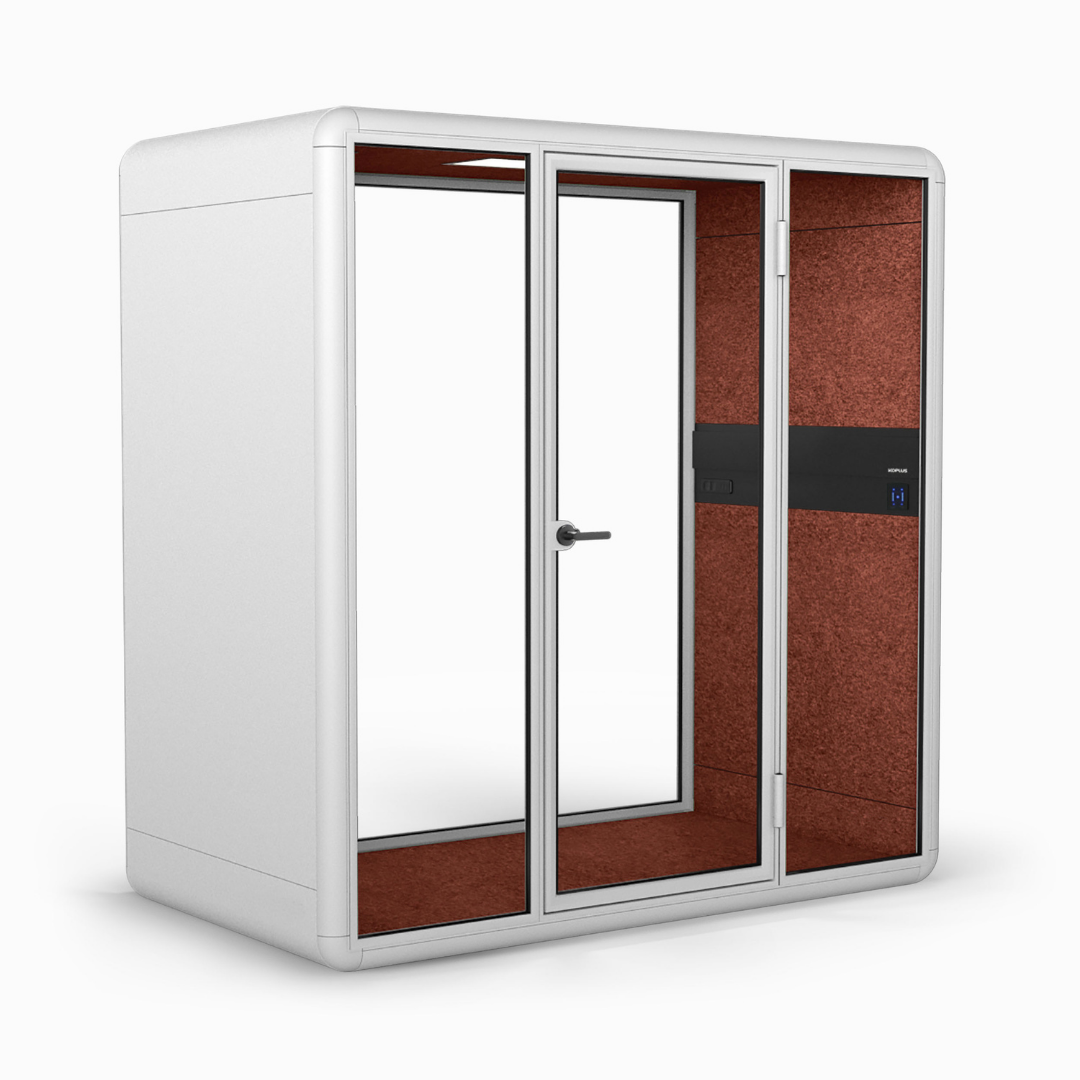

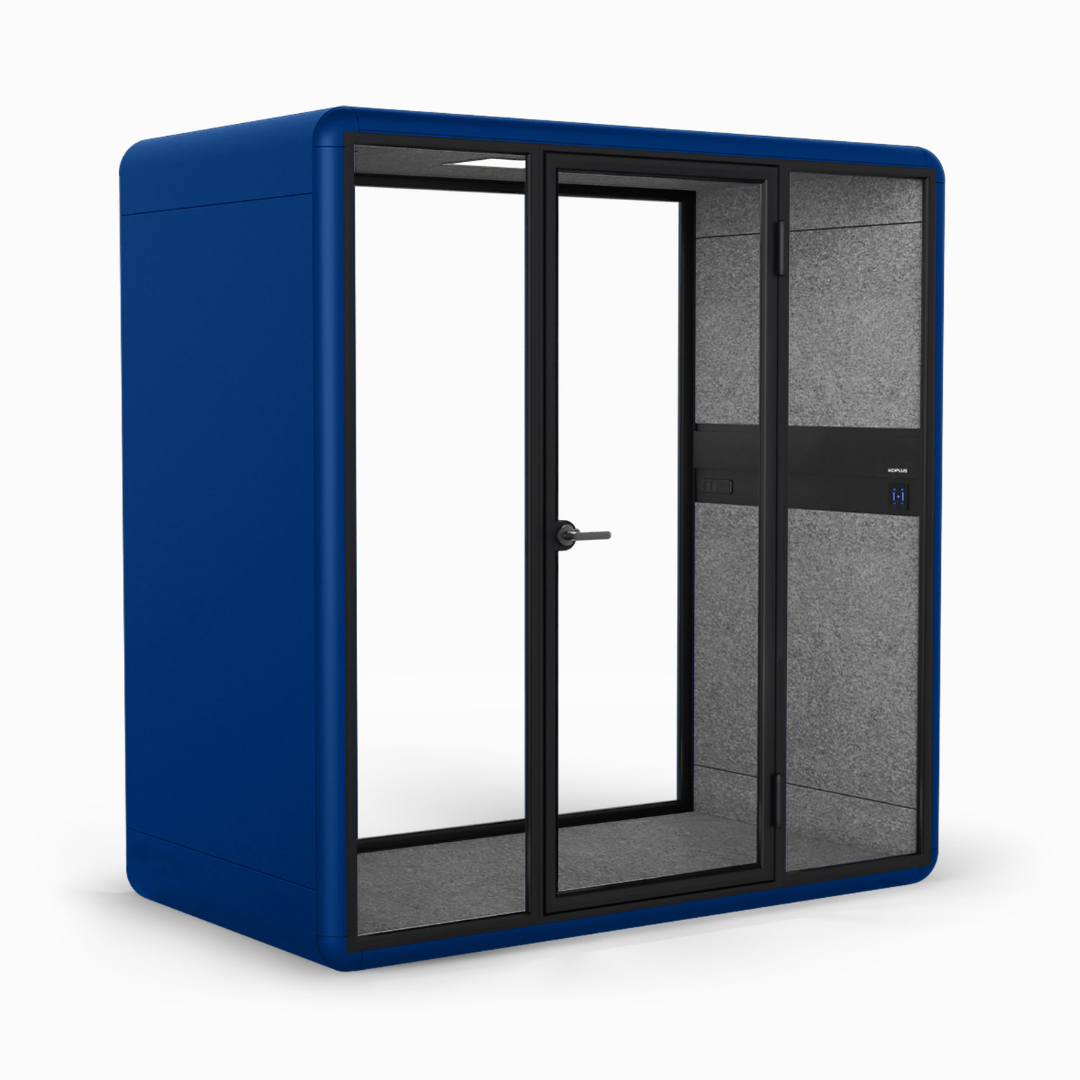

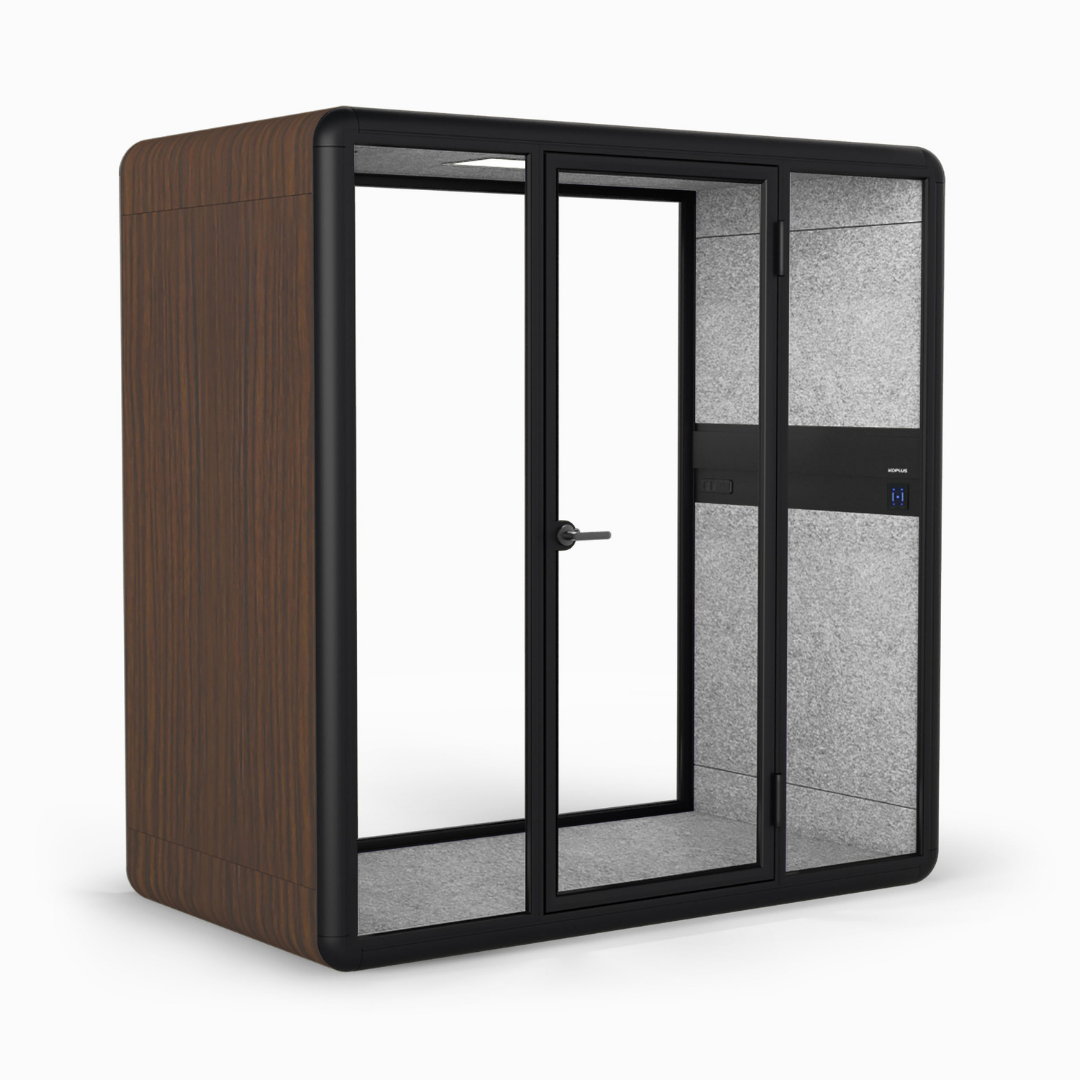

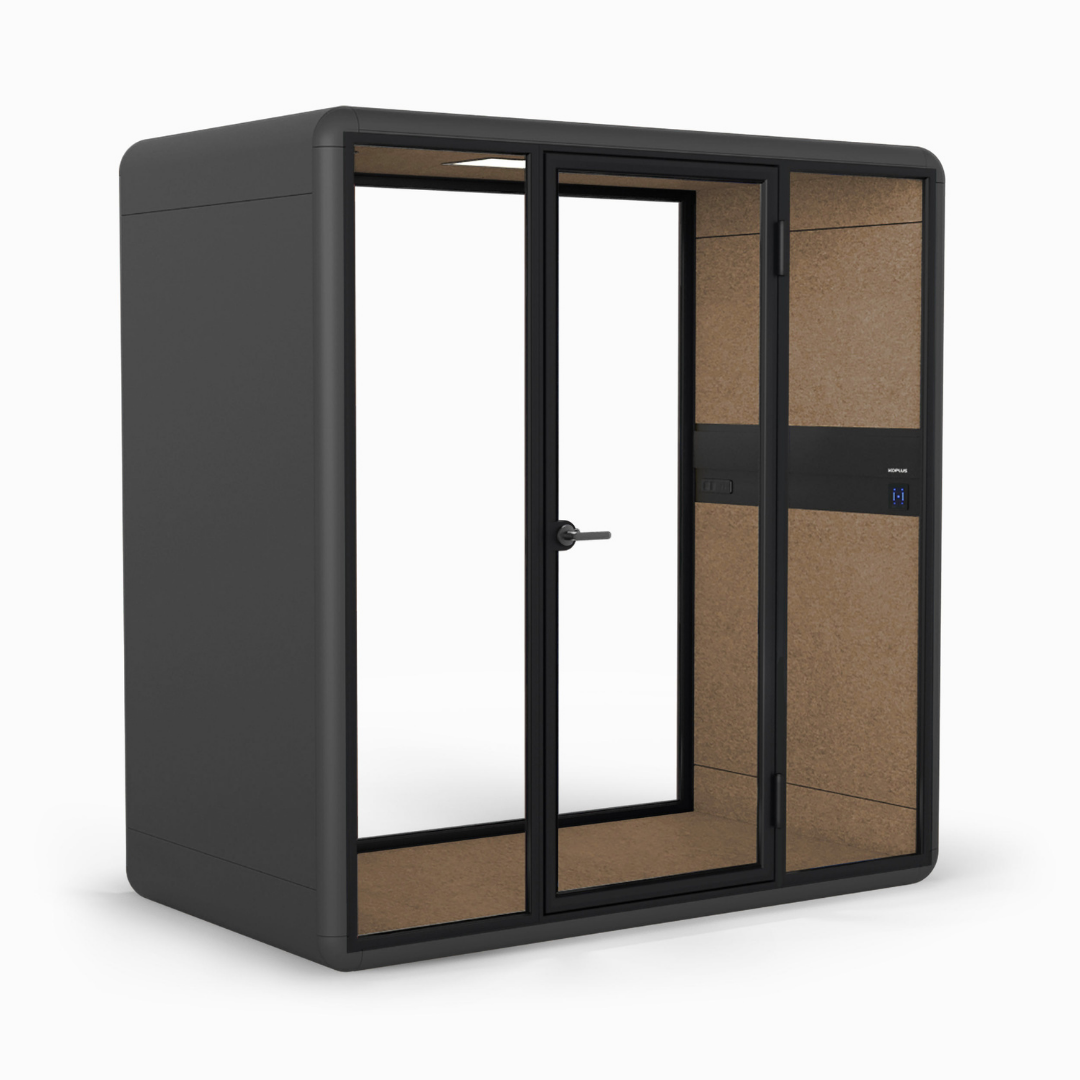

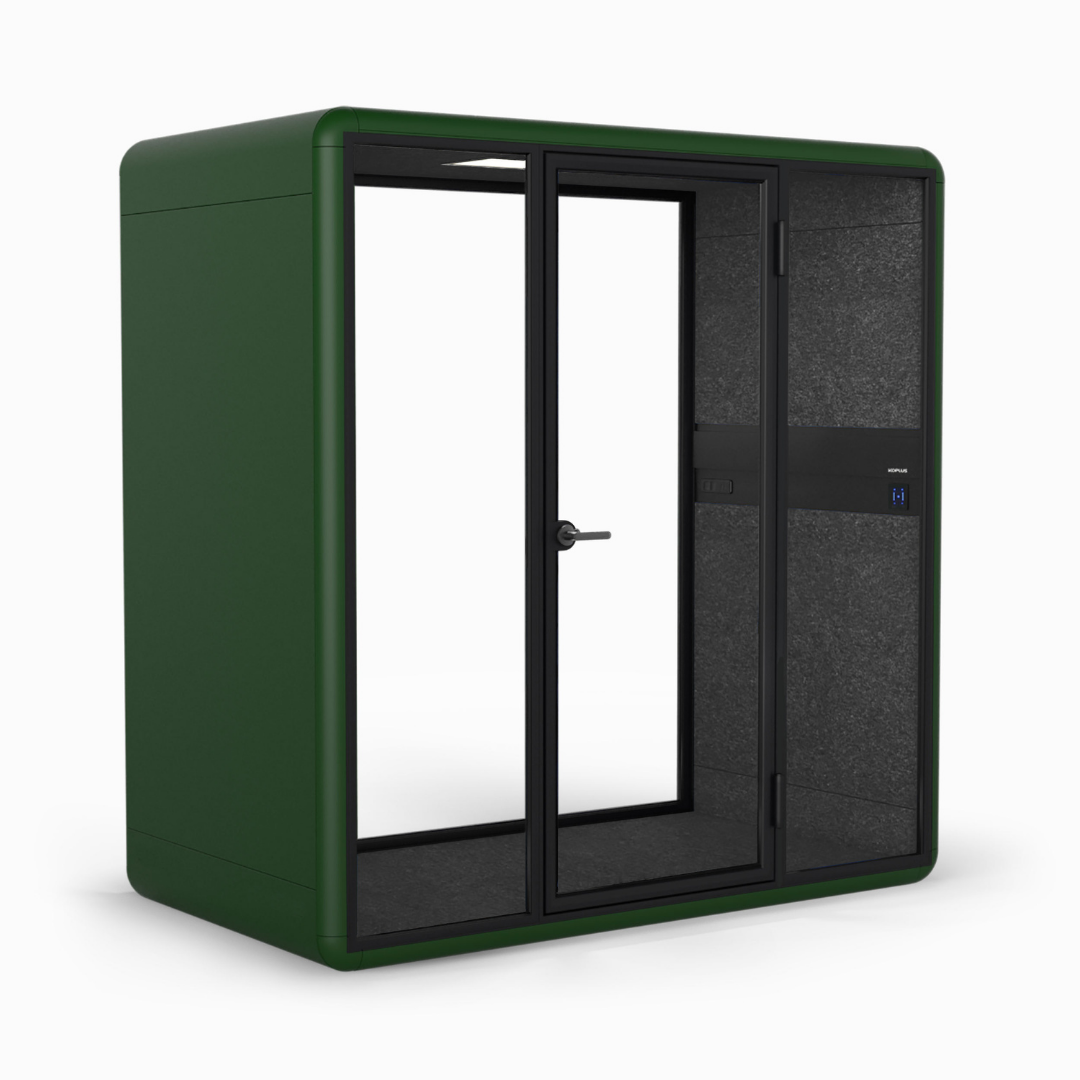

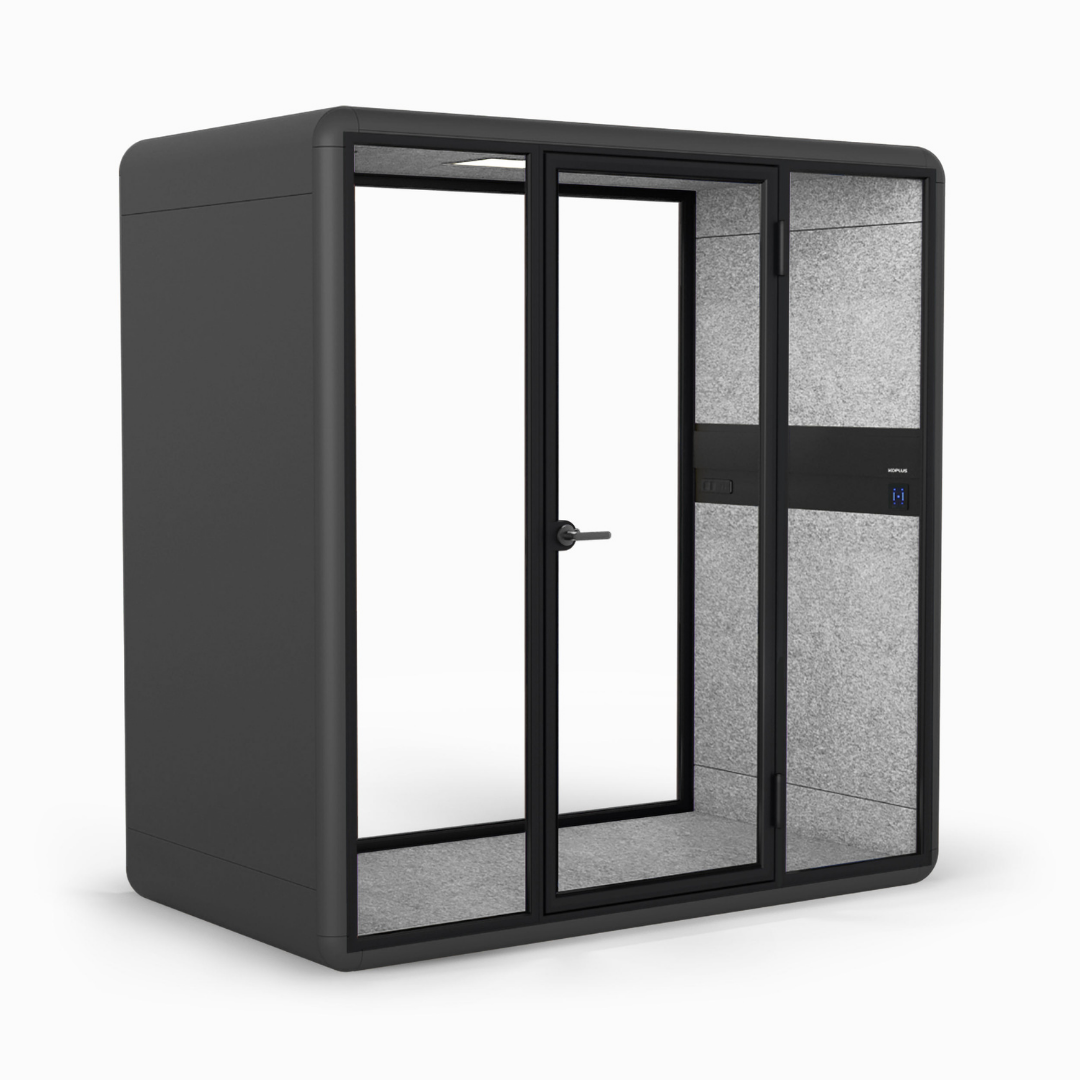

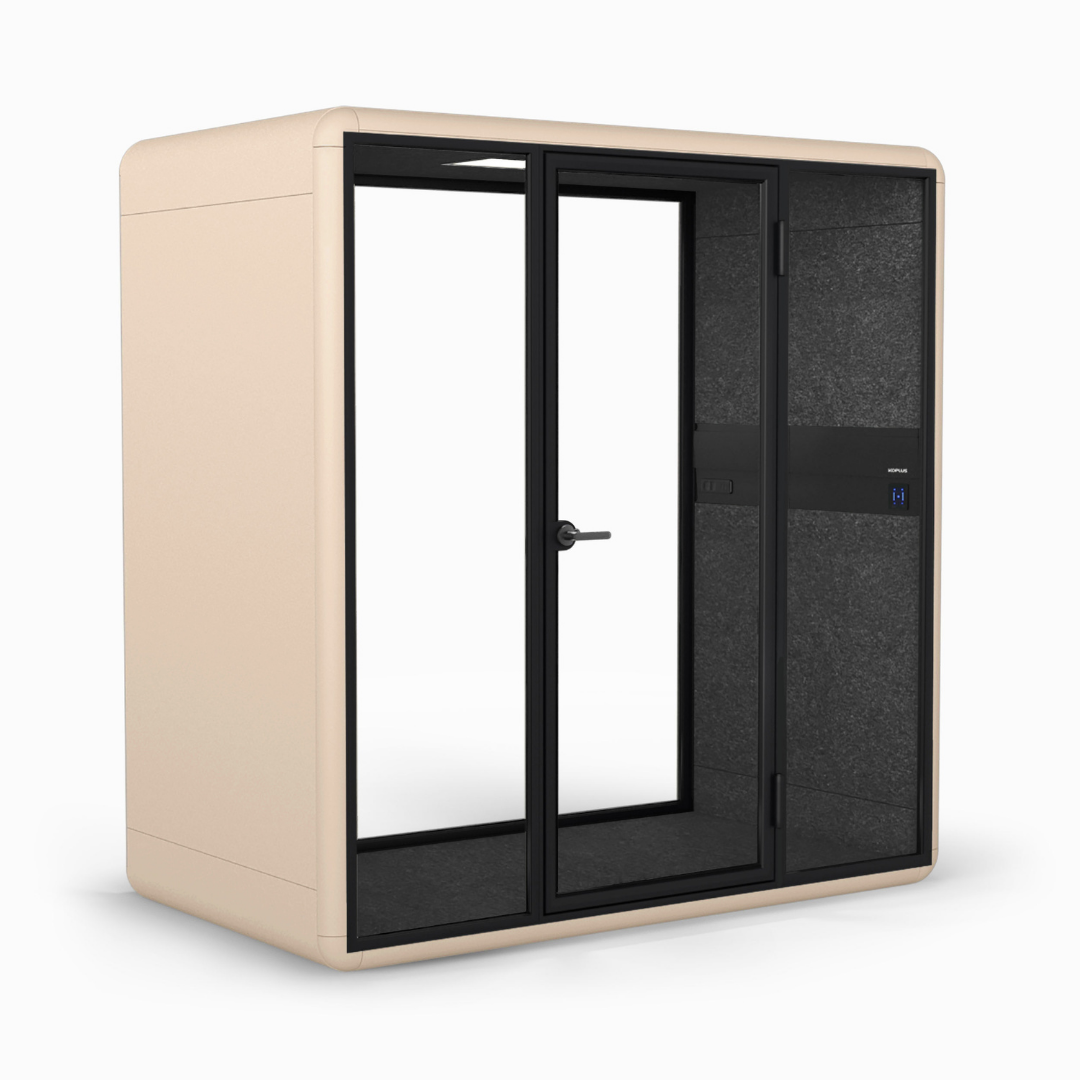

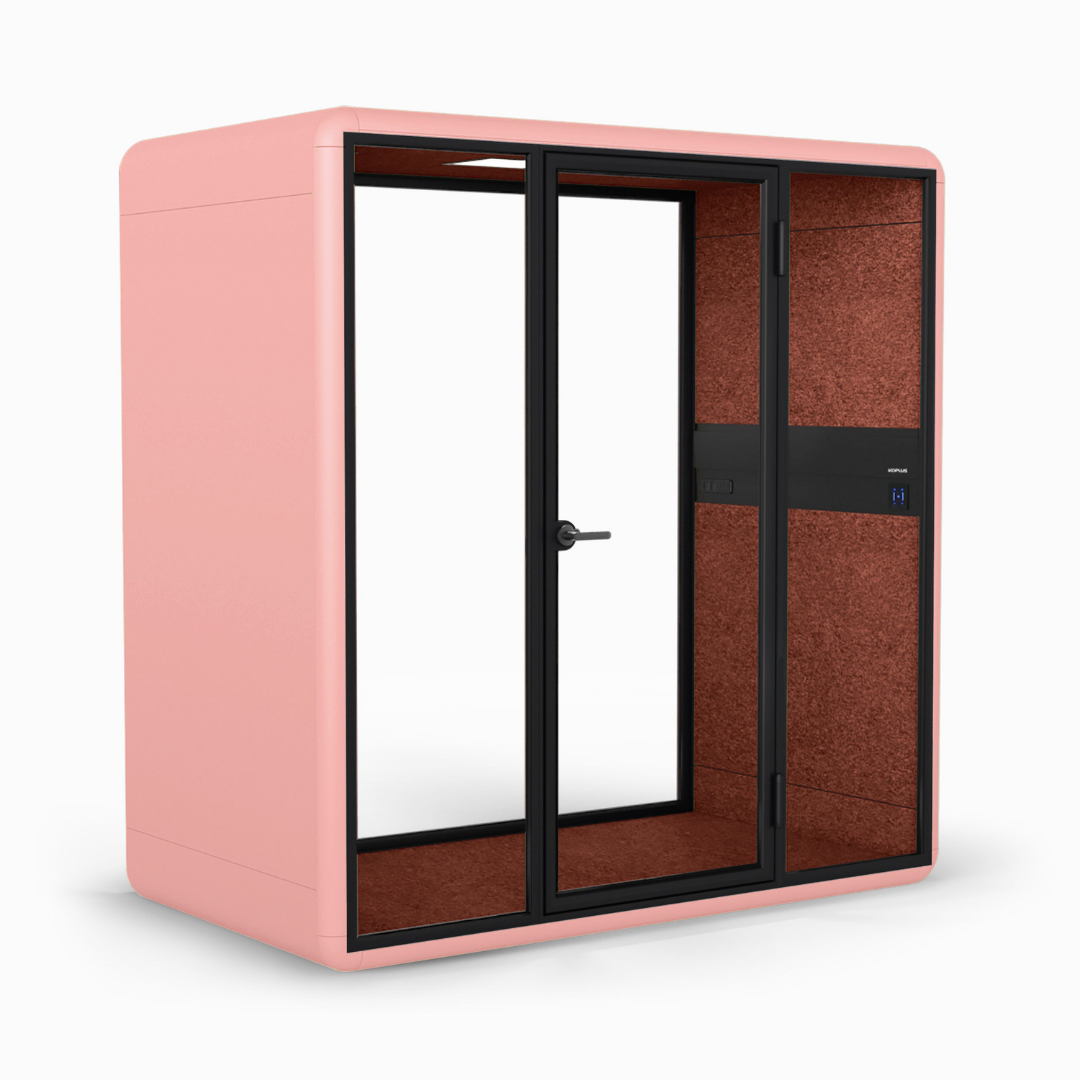

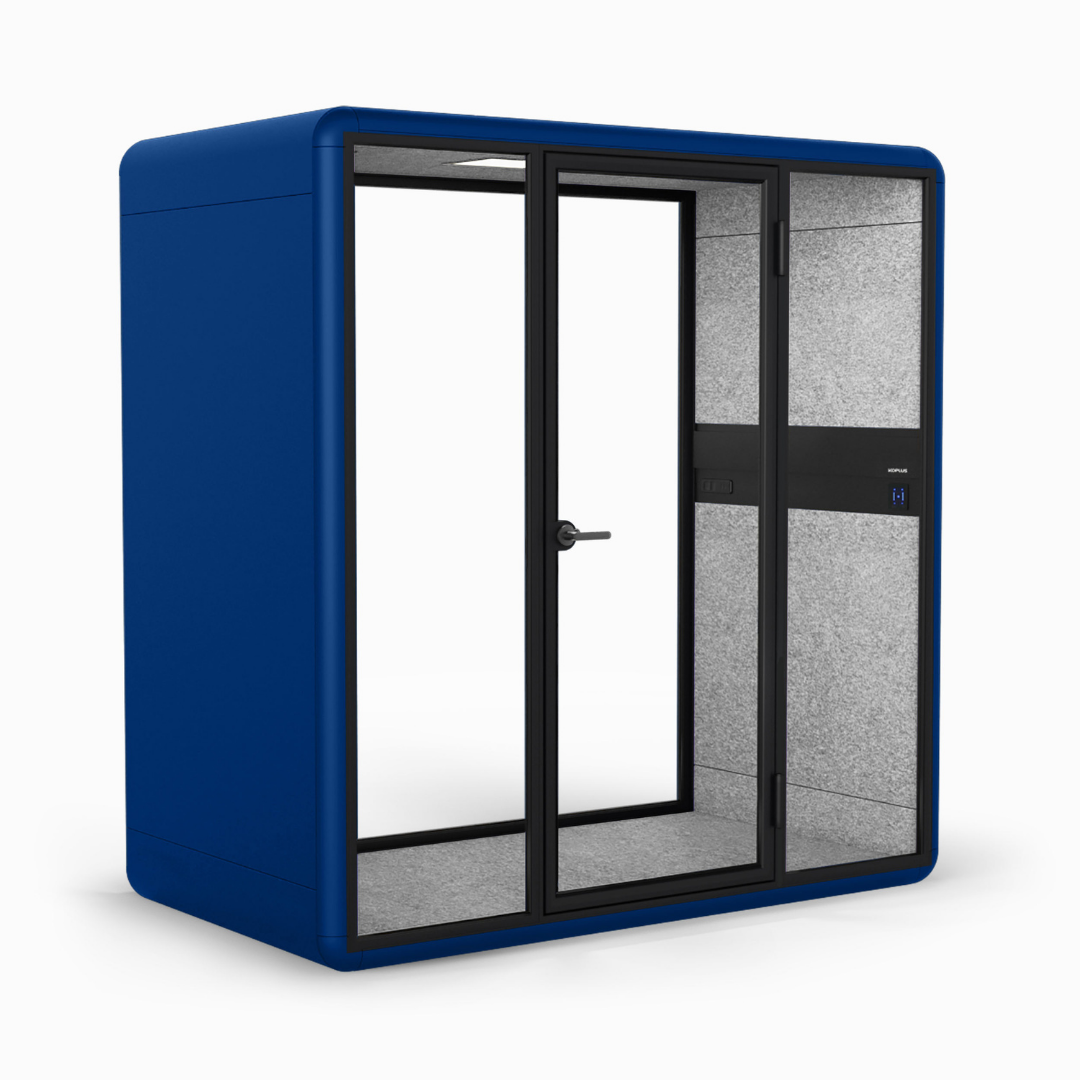

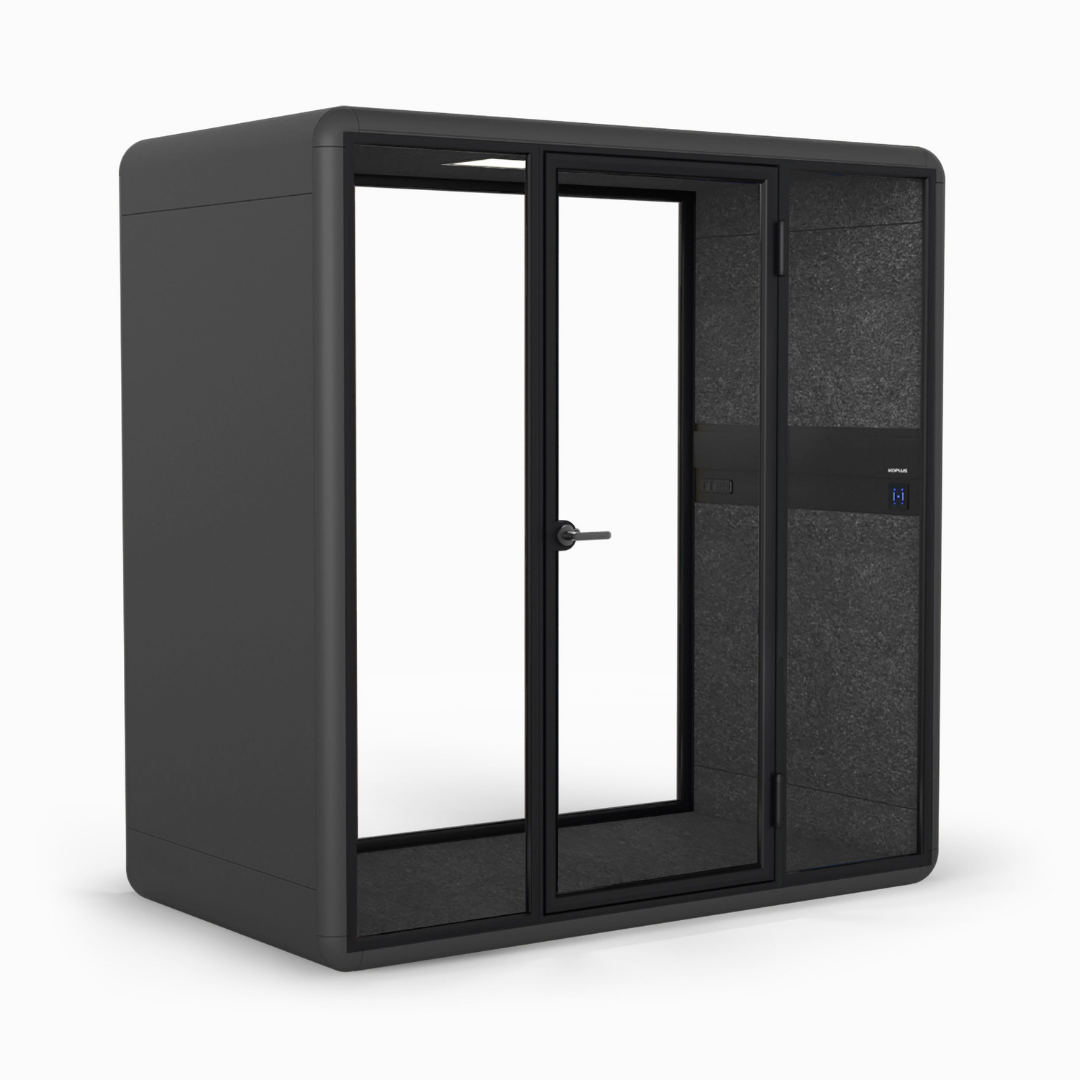

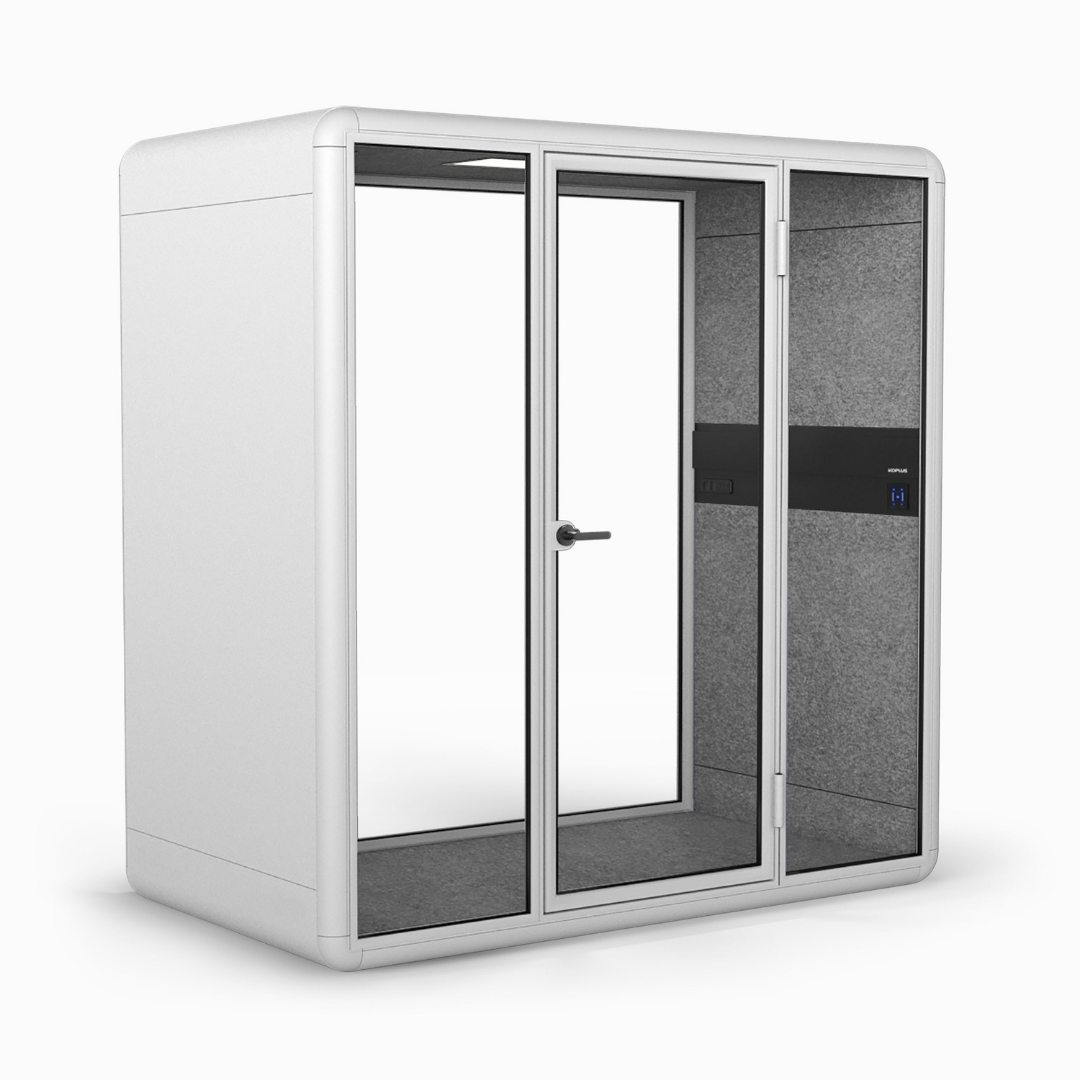

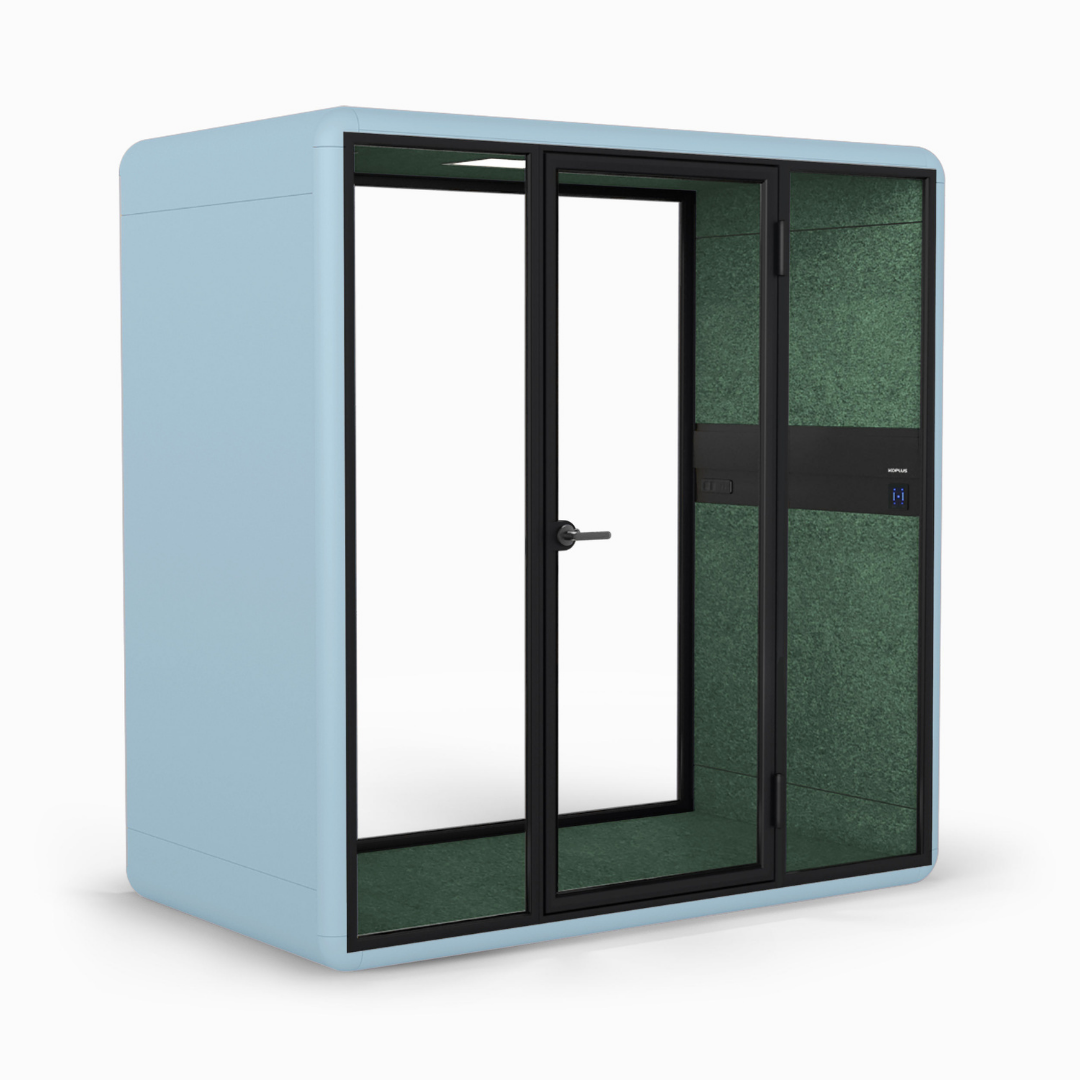

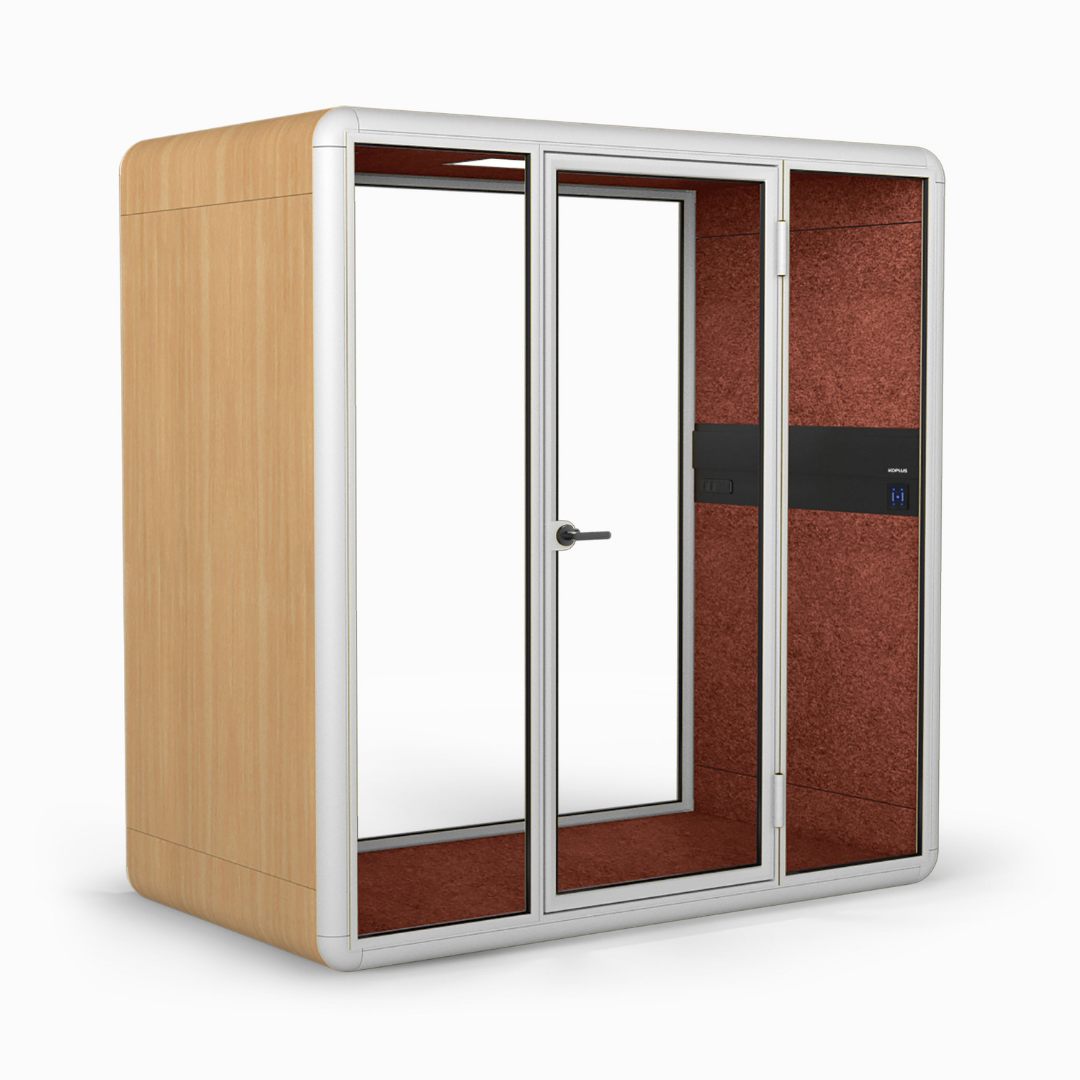

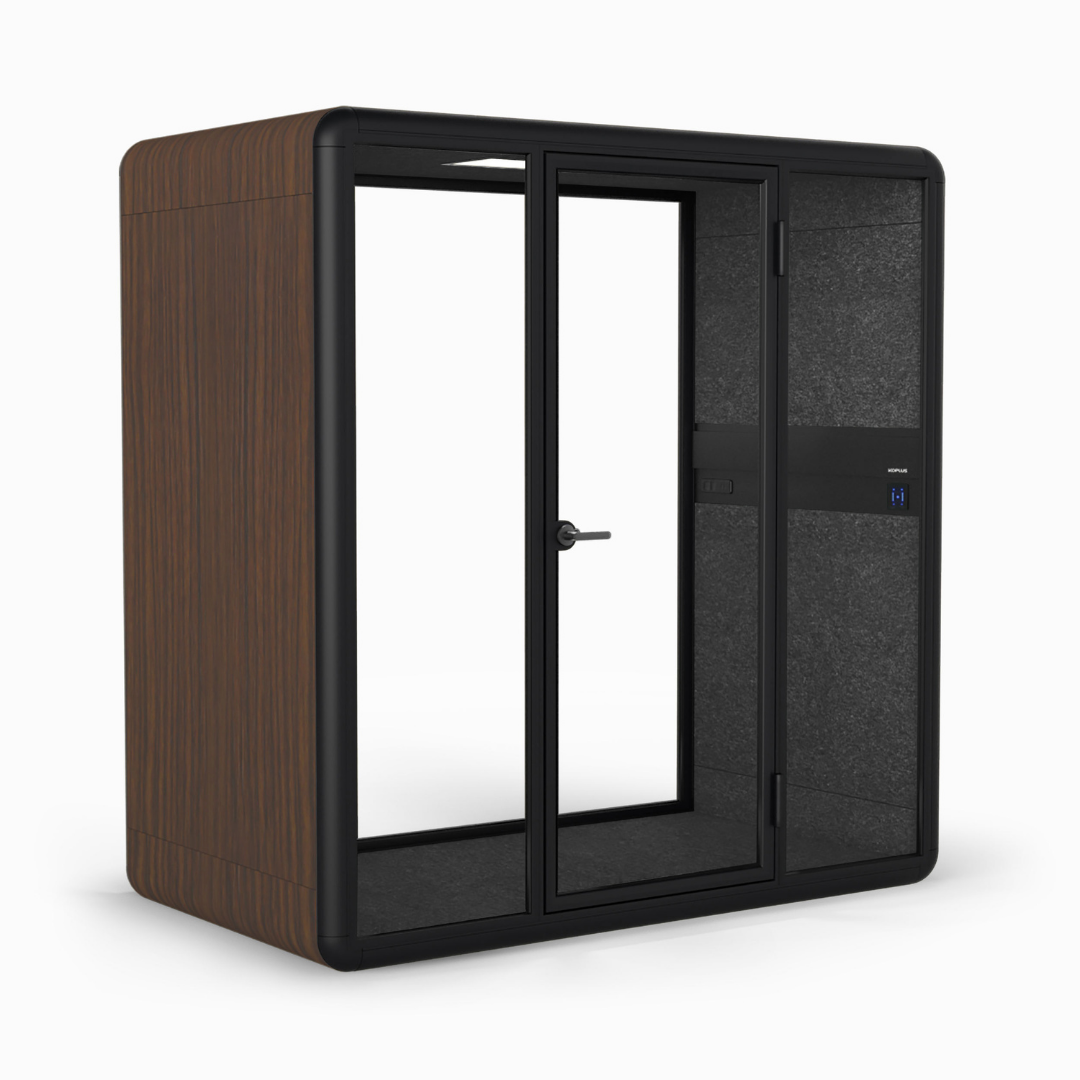

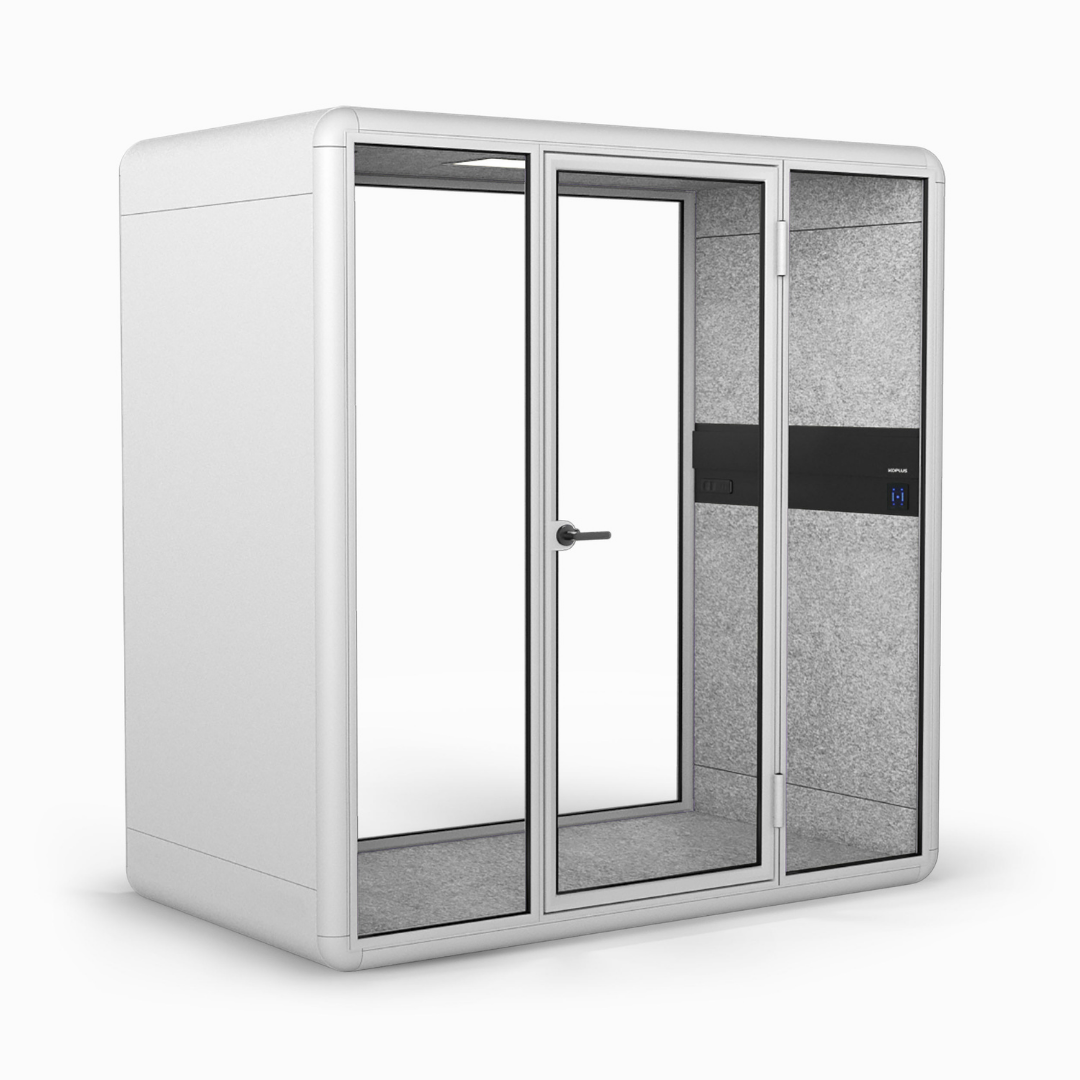

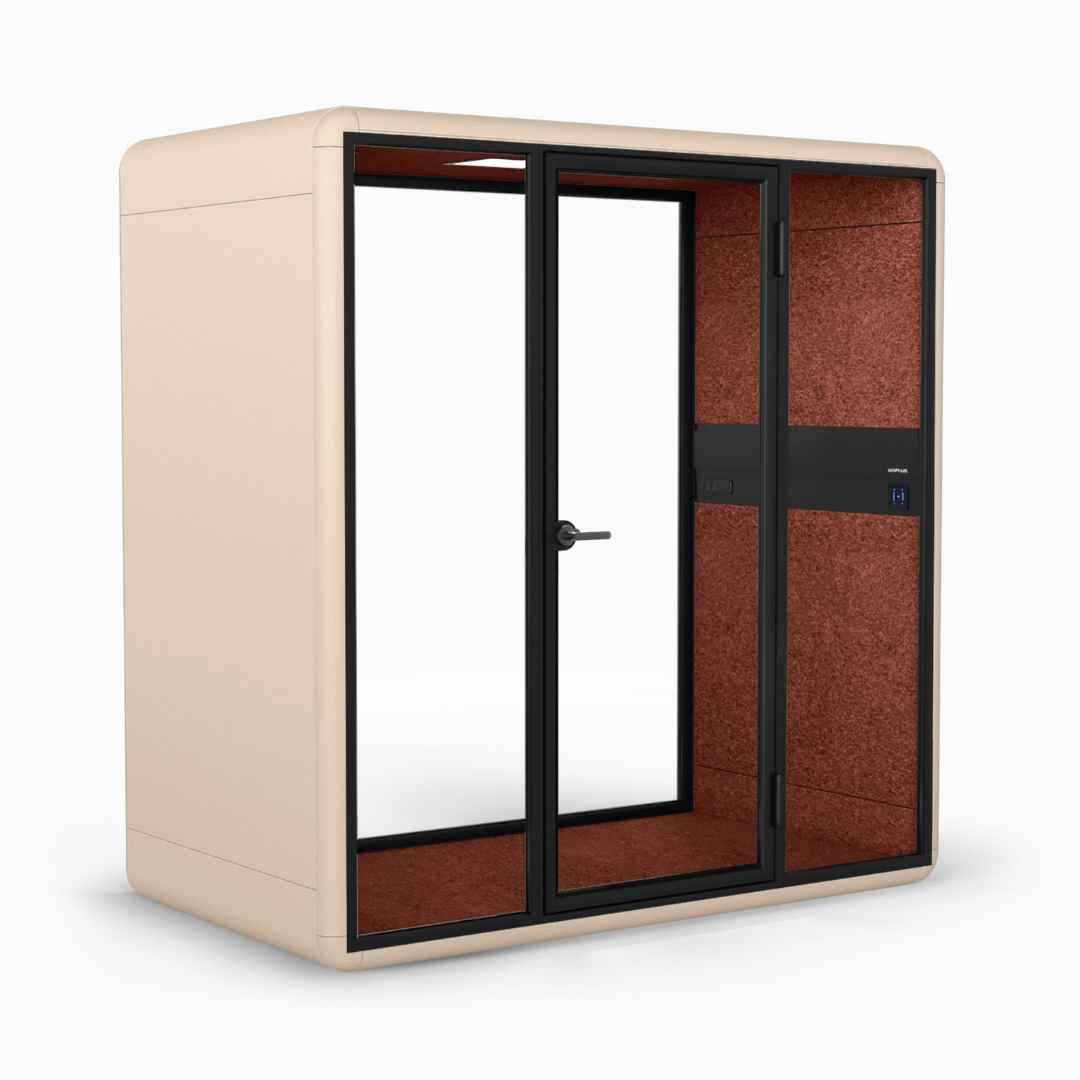

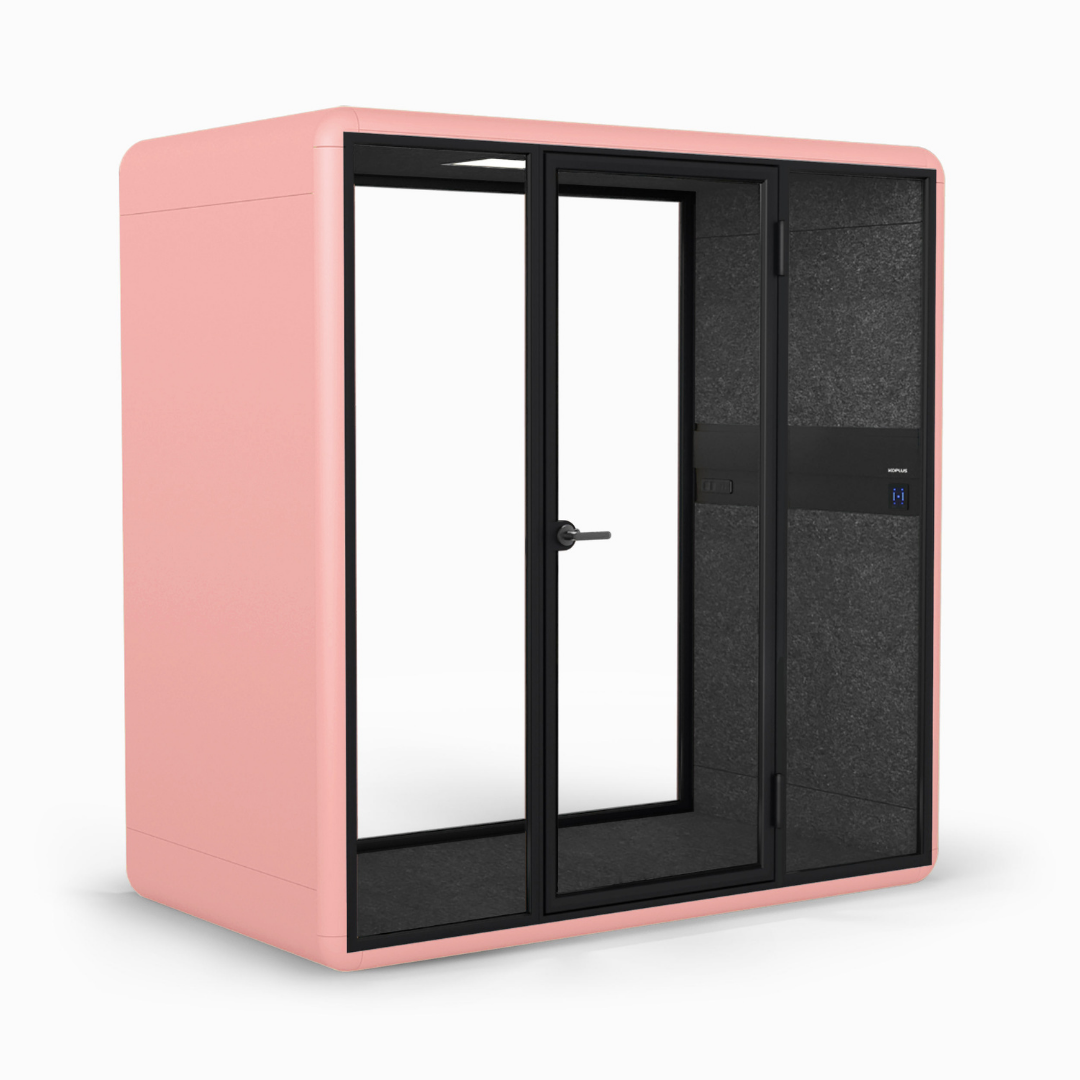

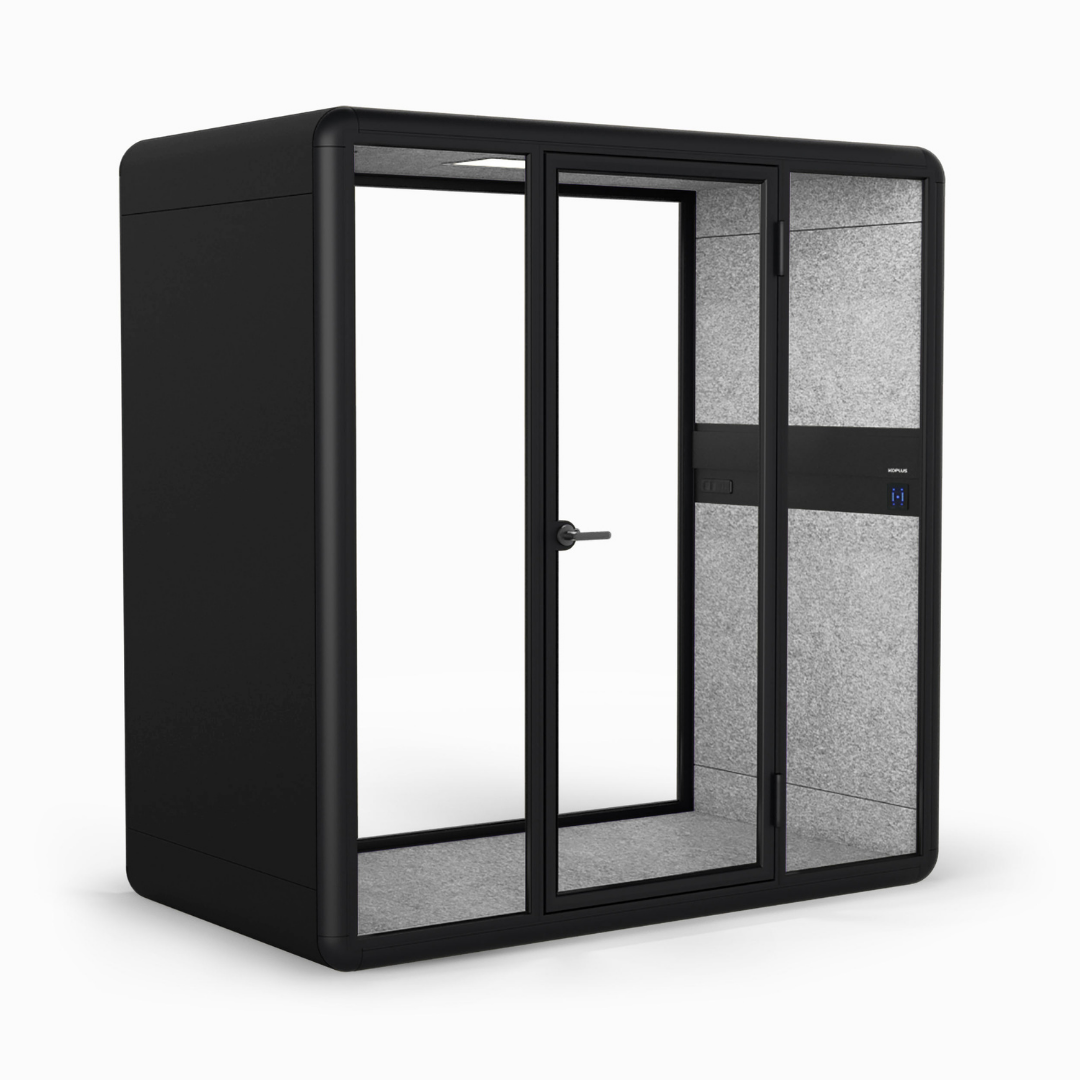

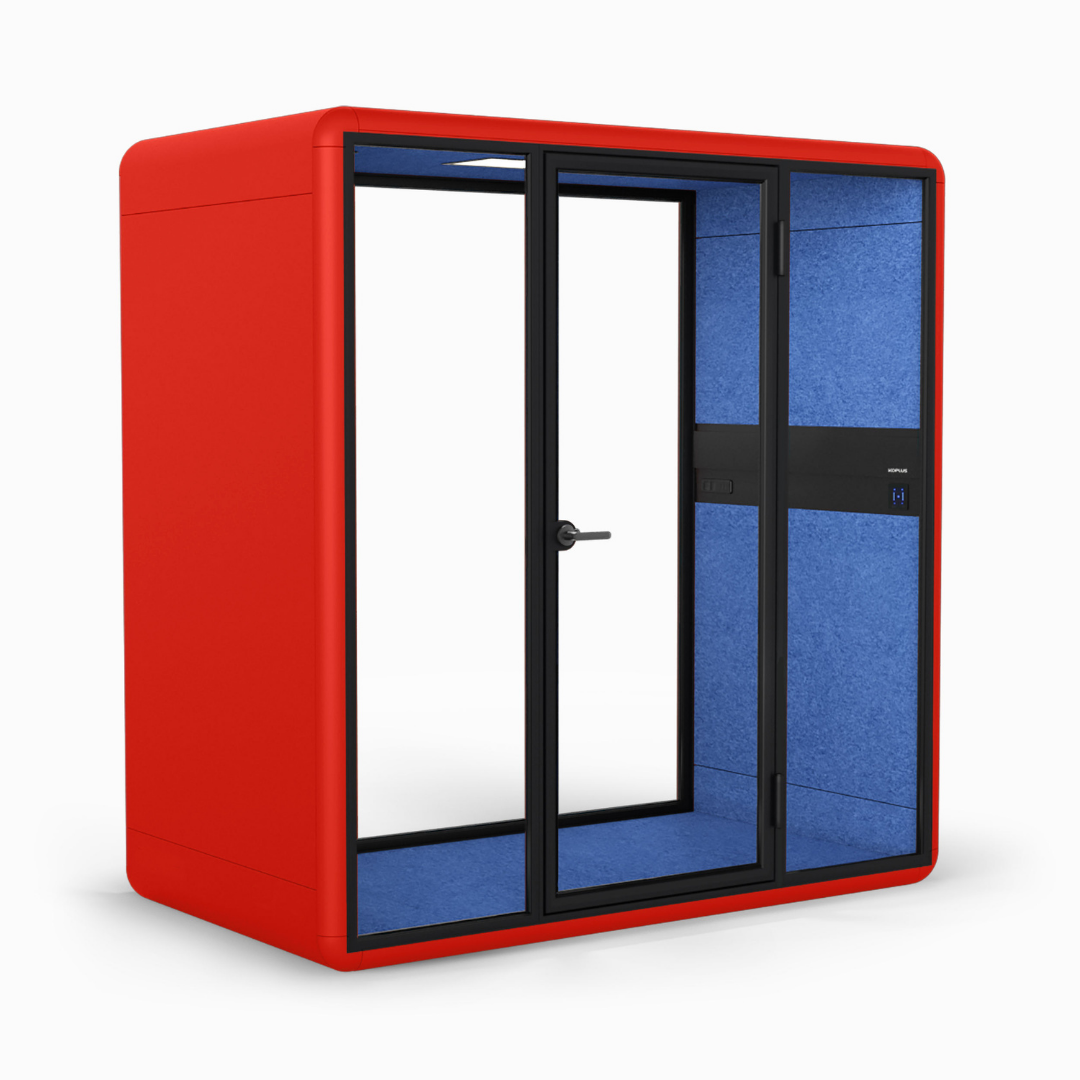

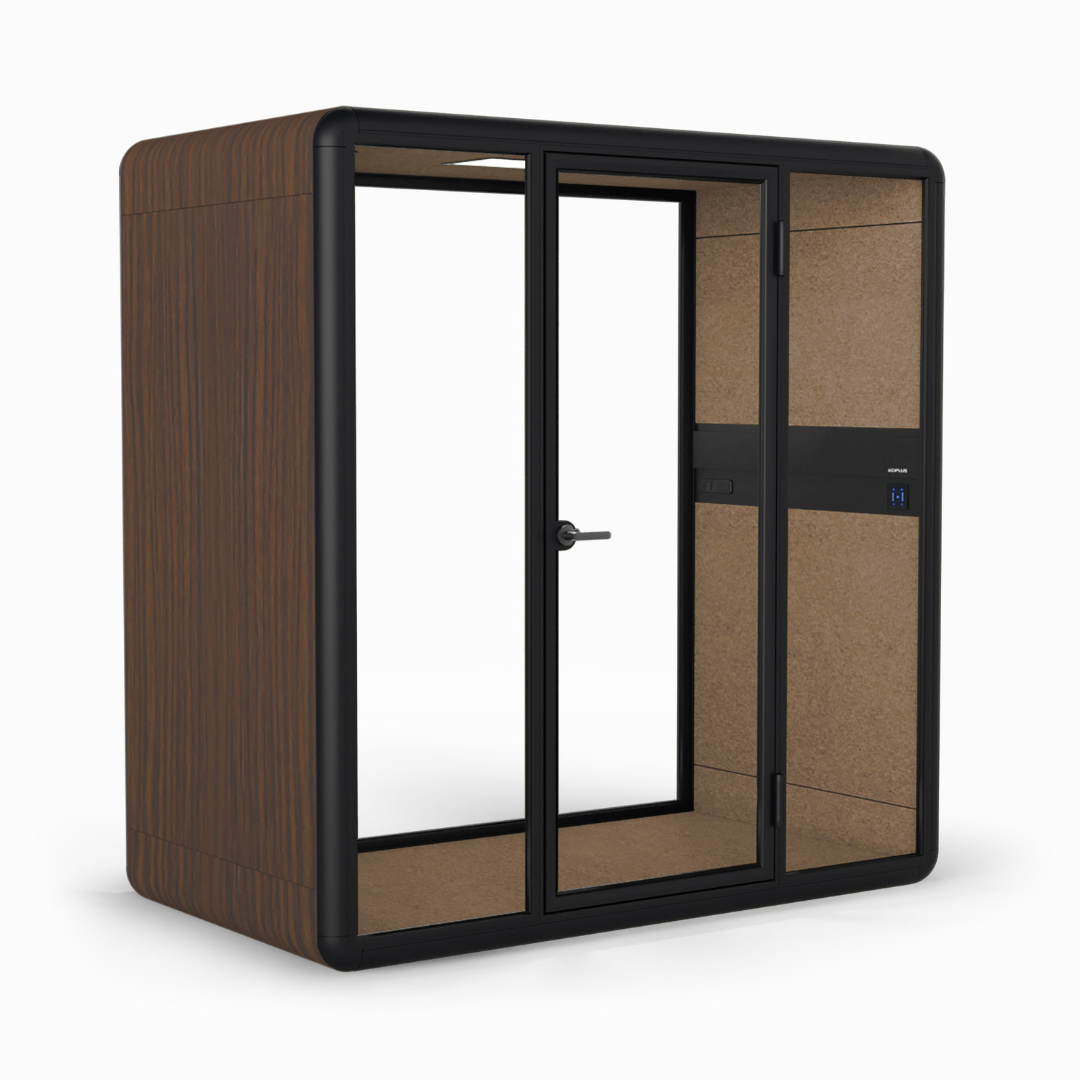

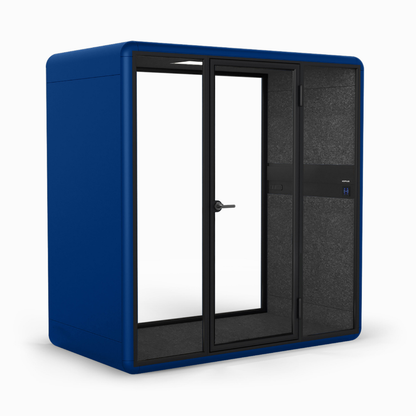

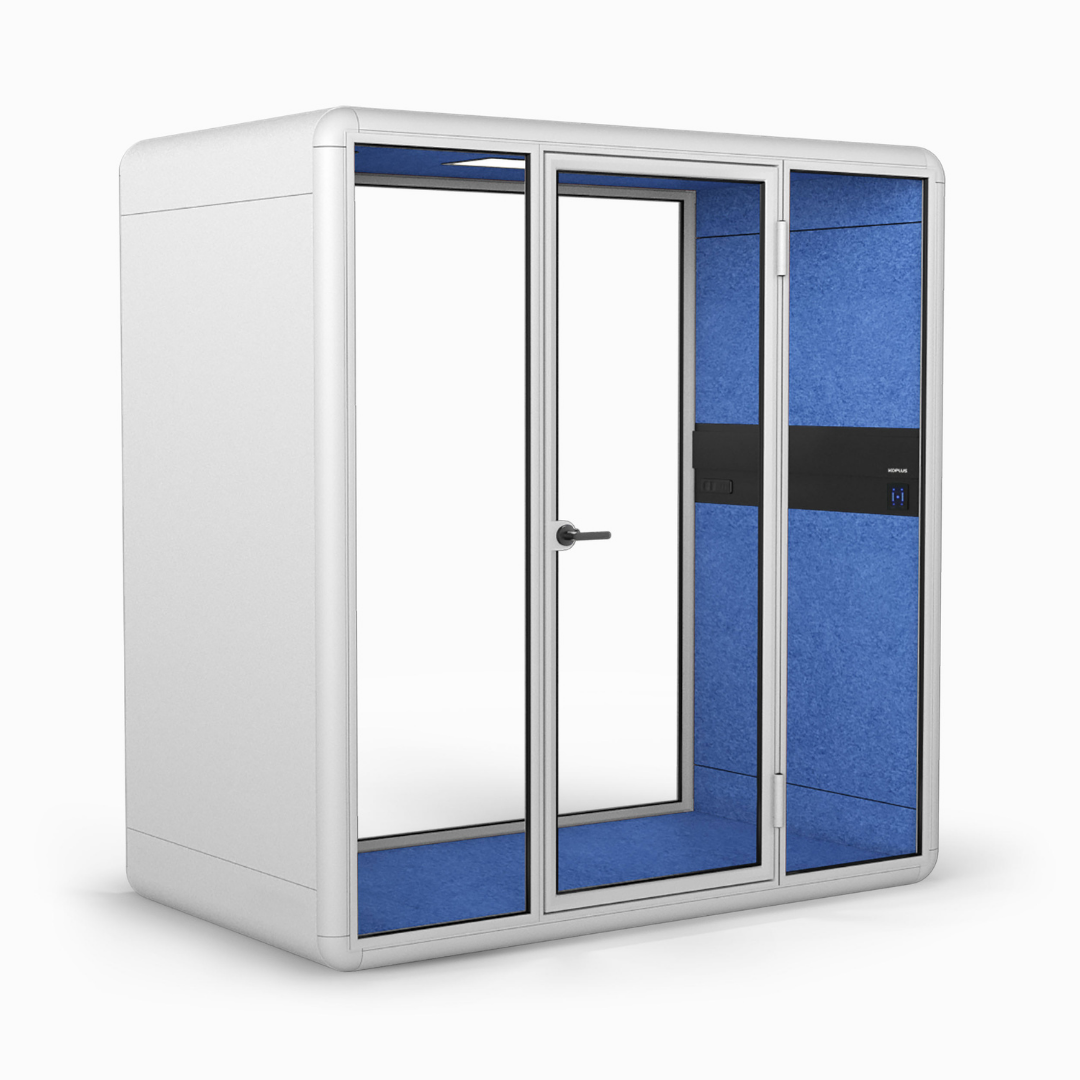

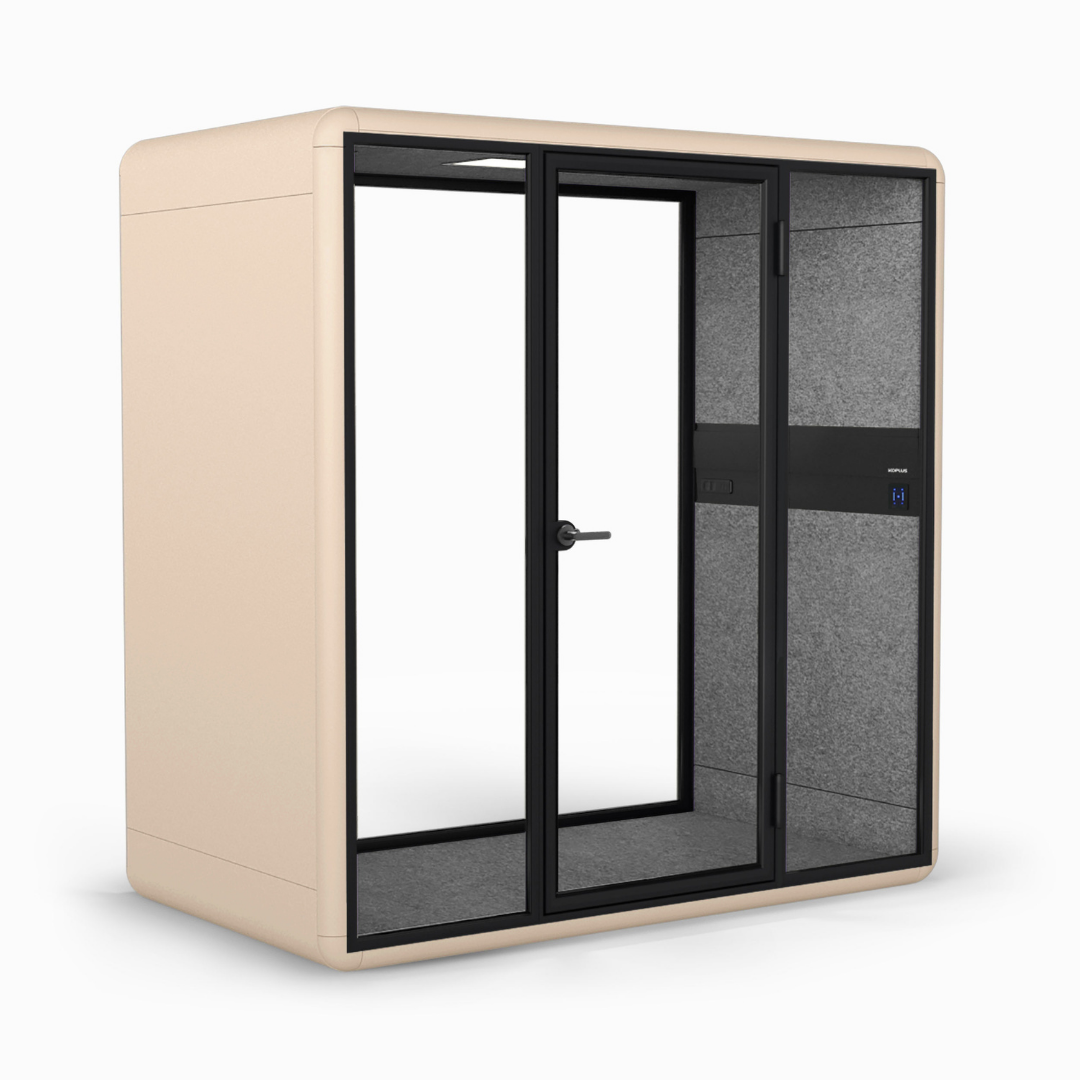

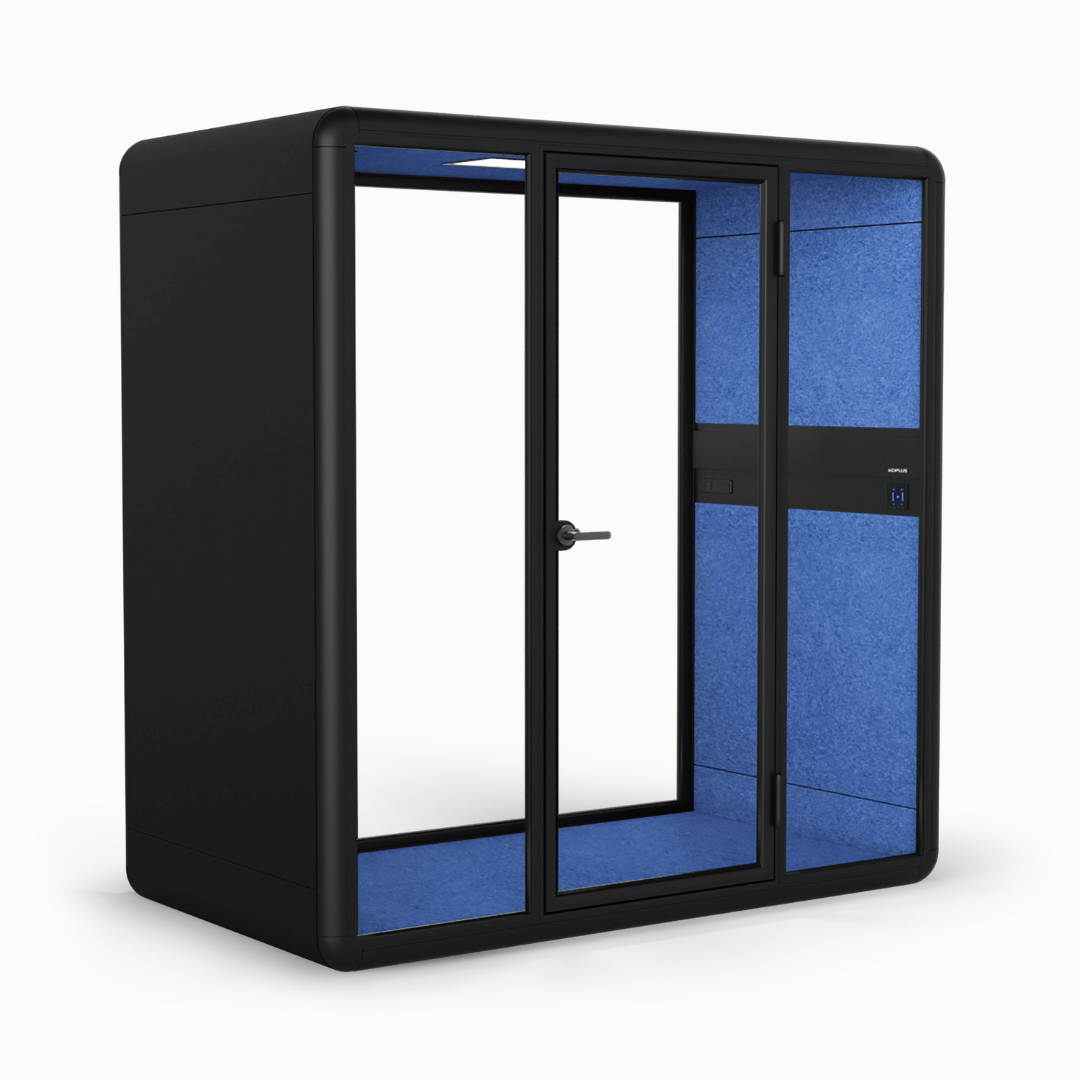

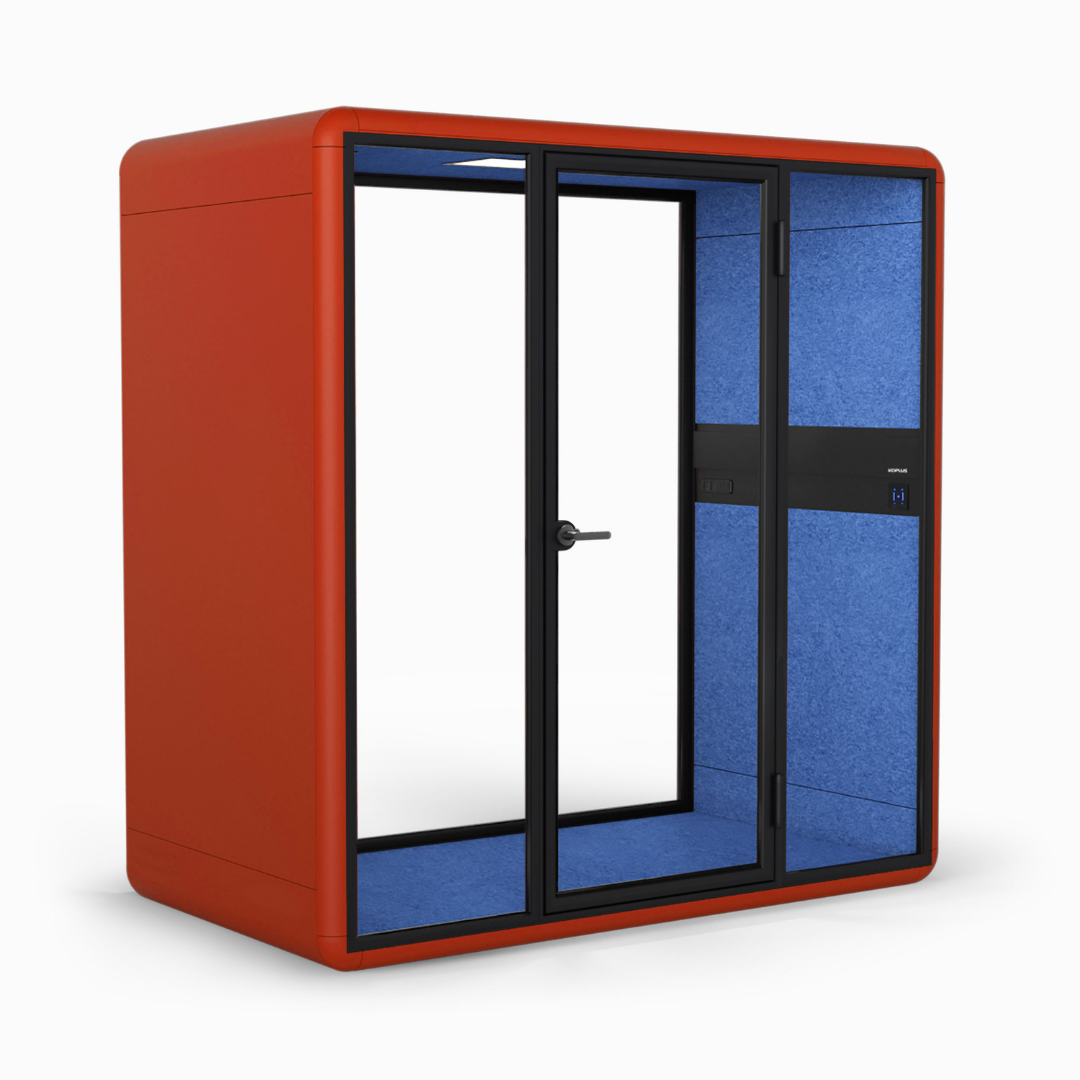

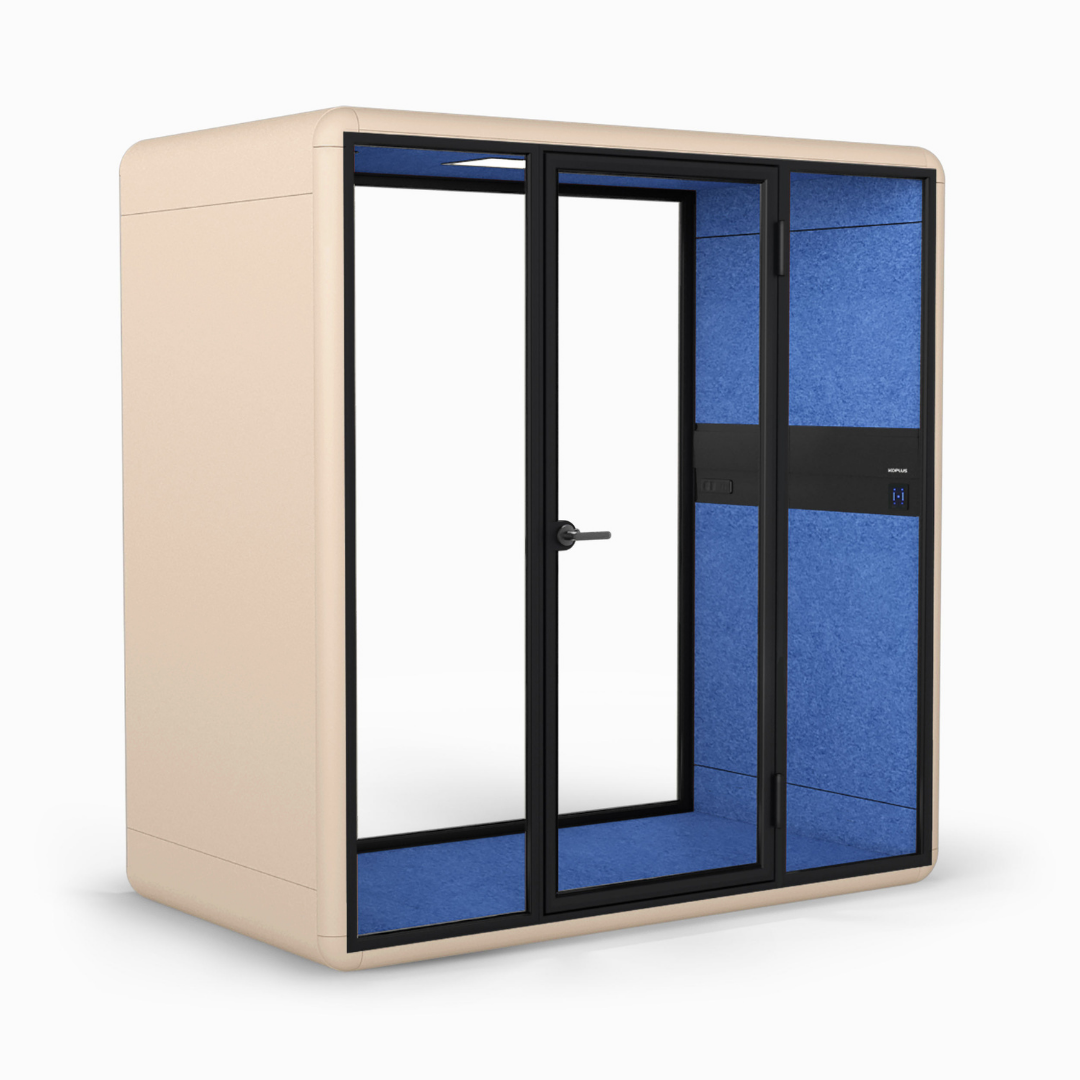

Koplus Duo Acoustic Meeting Booth

Koplus Duo offers a quiet haven in any given space!

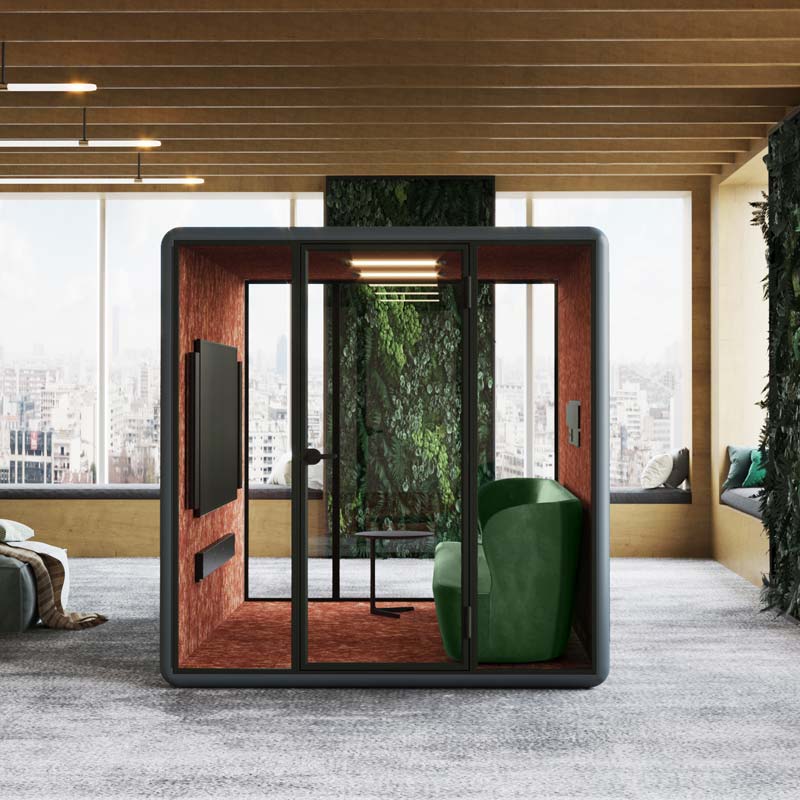

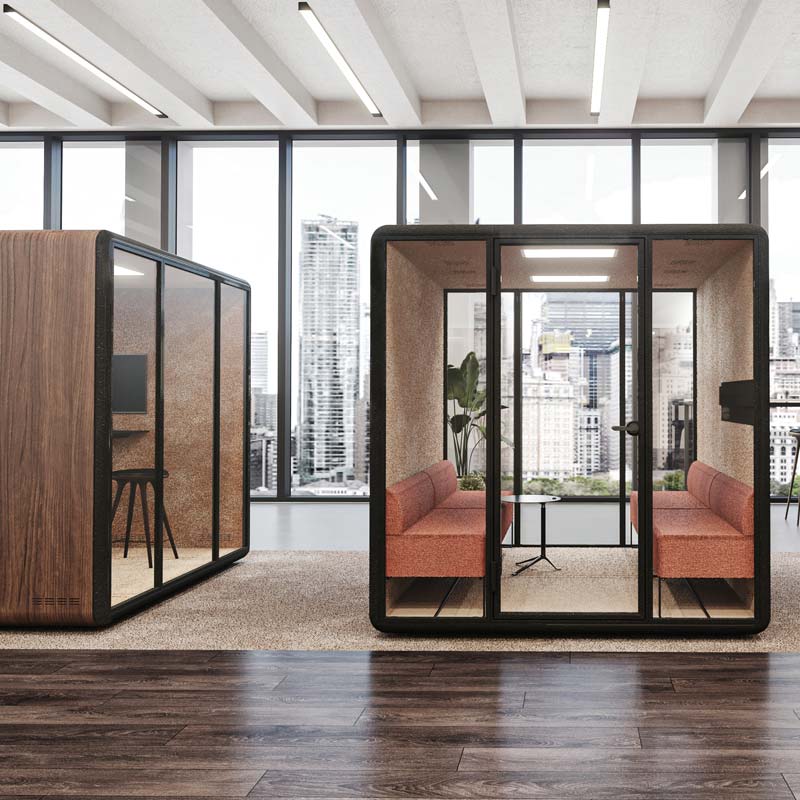

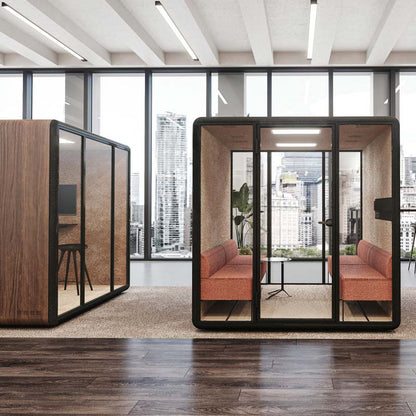

Duo features a modular design that accommodates up to 4 people per unit. The configuration can be extended into Duo+ with two units and Duo++ with three units to provide a more formal meeting venue for up to 8 people (please get in touch to discuss these larger options). The space can be used as a meeting/conference room, a workstation, or a personal resting space. Duo is adaptable to any open-plan workspace to meet your needs.

Frame: Aluminium

Exterior: Steel structure with steel sheet cladding

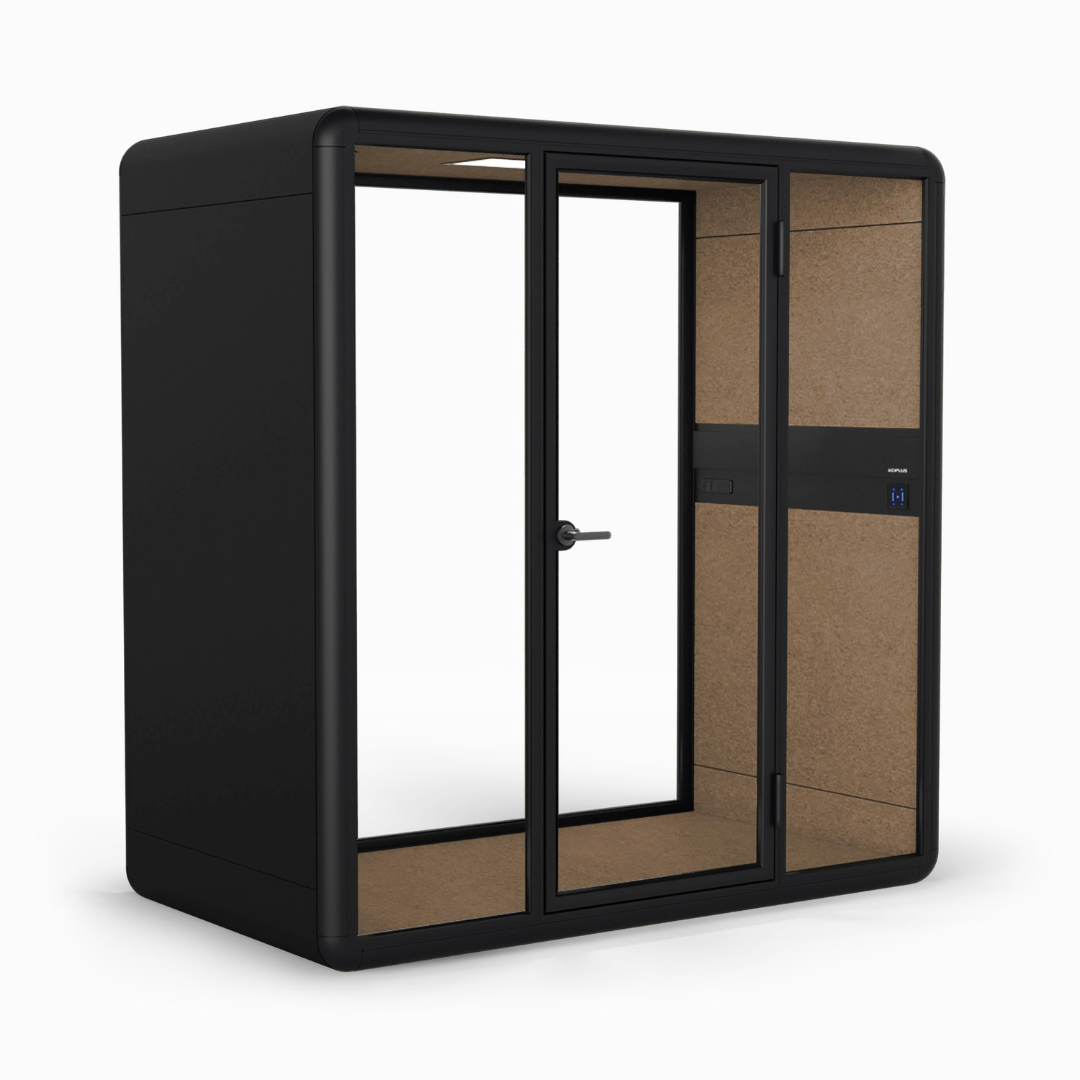

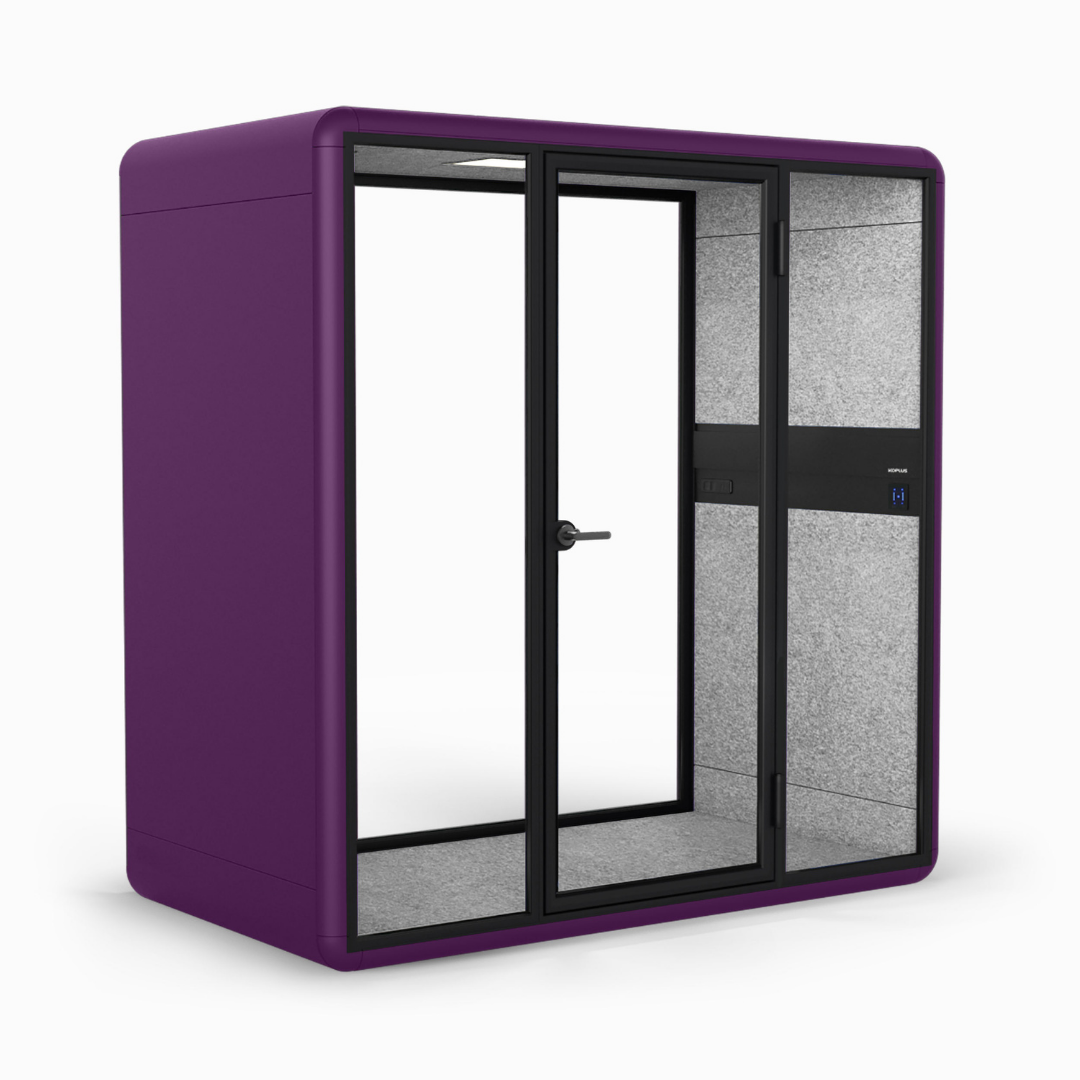

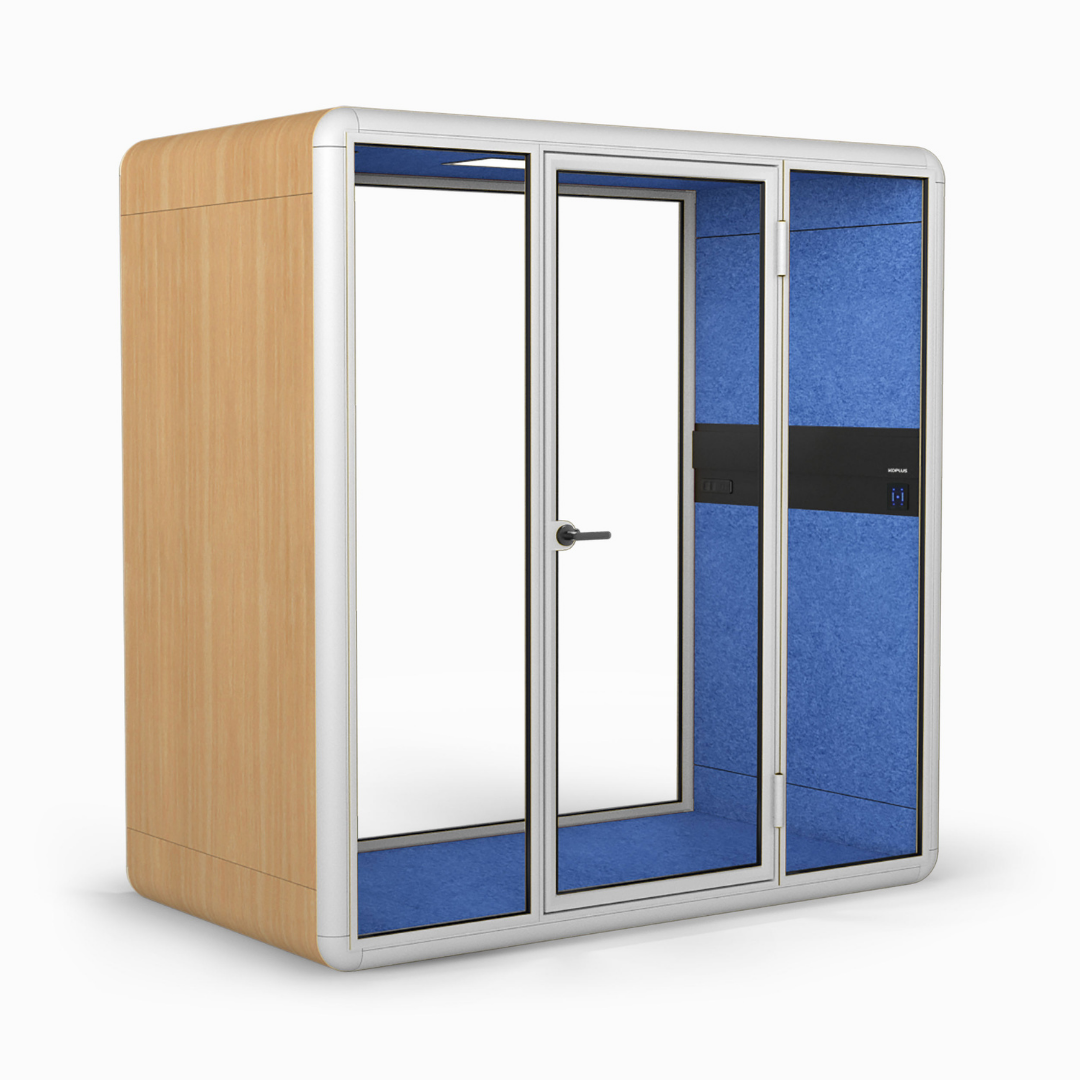

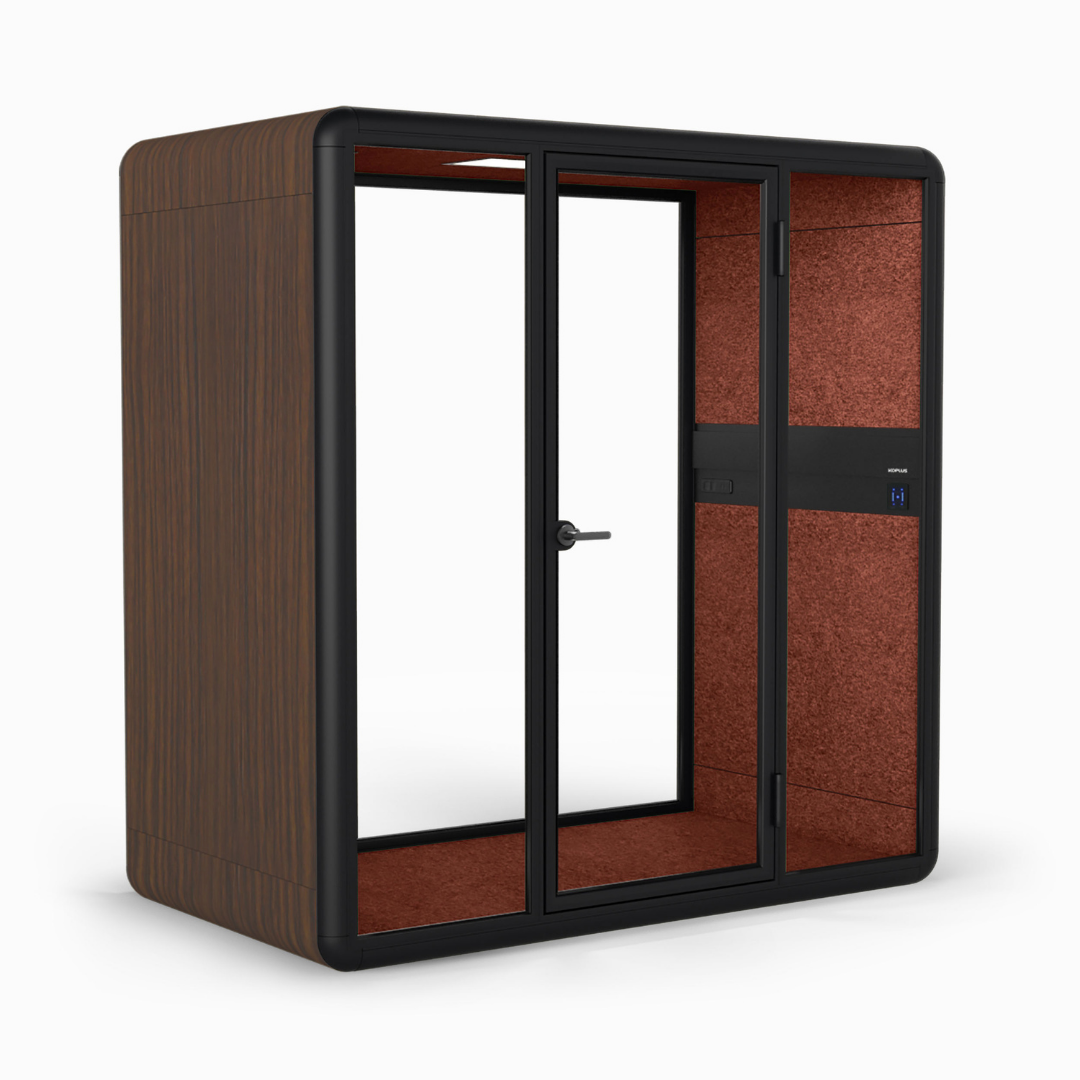

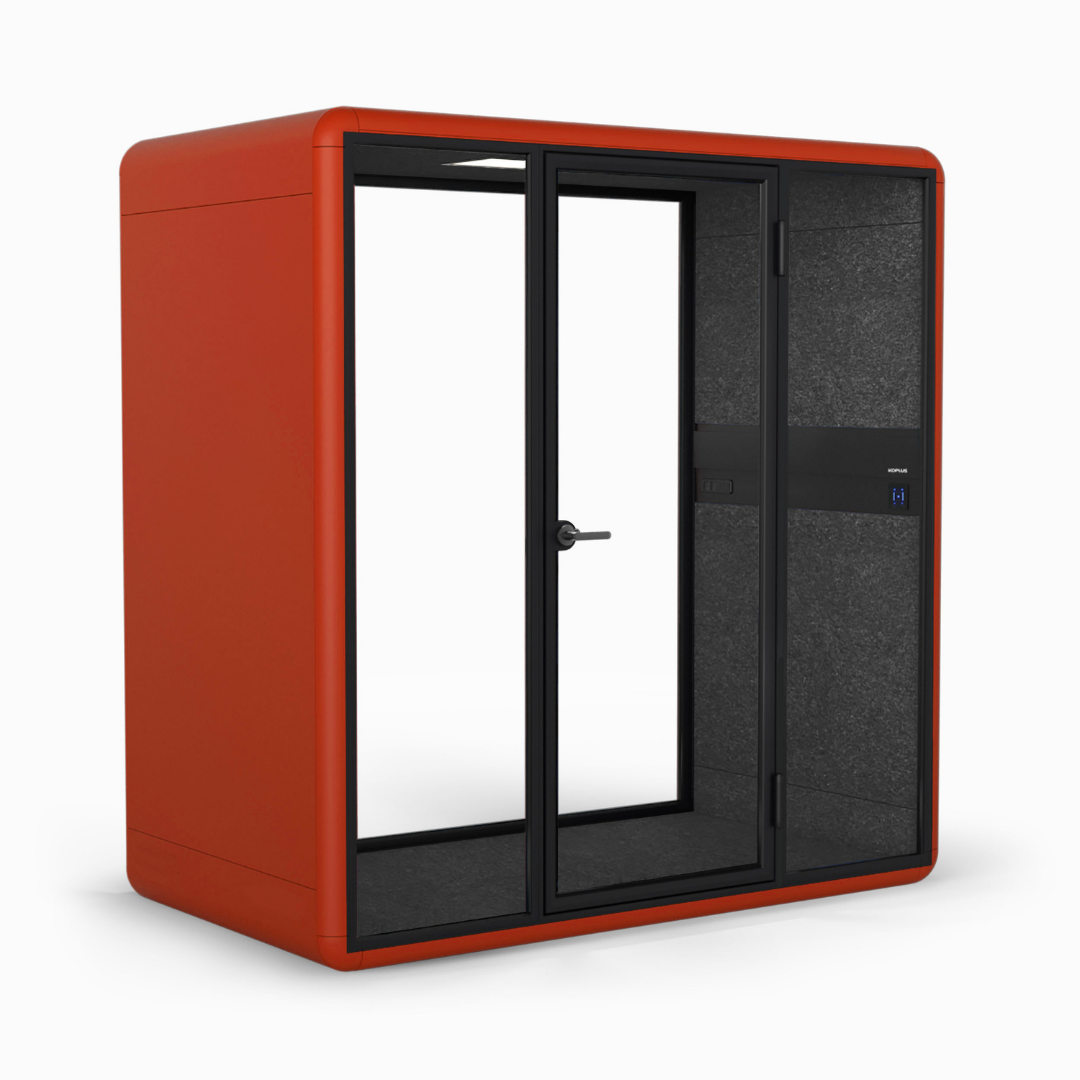

Interior: Mid Grey PET as standard, other colours available on request. The standard booth is sold without any furniture.

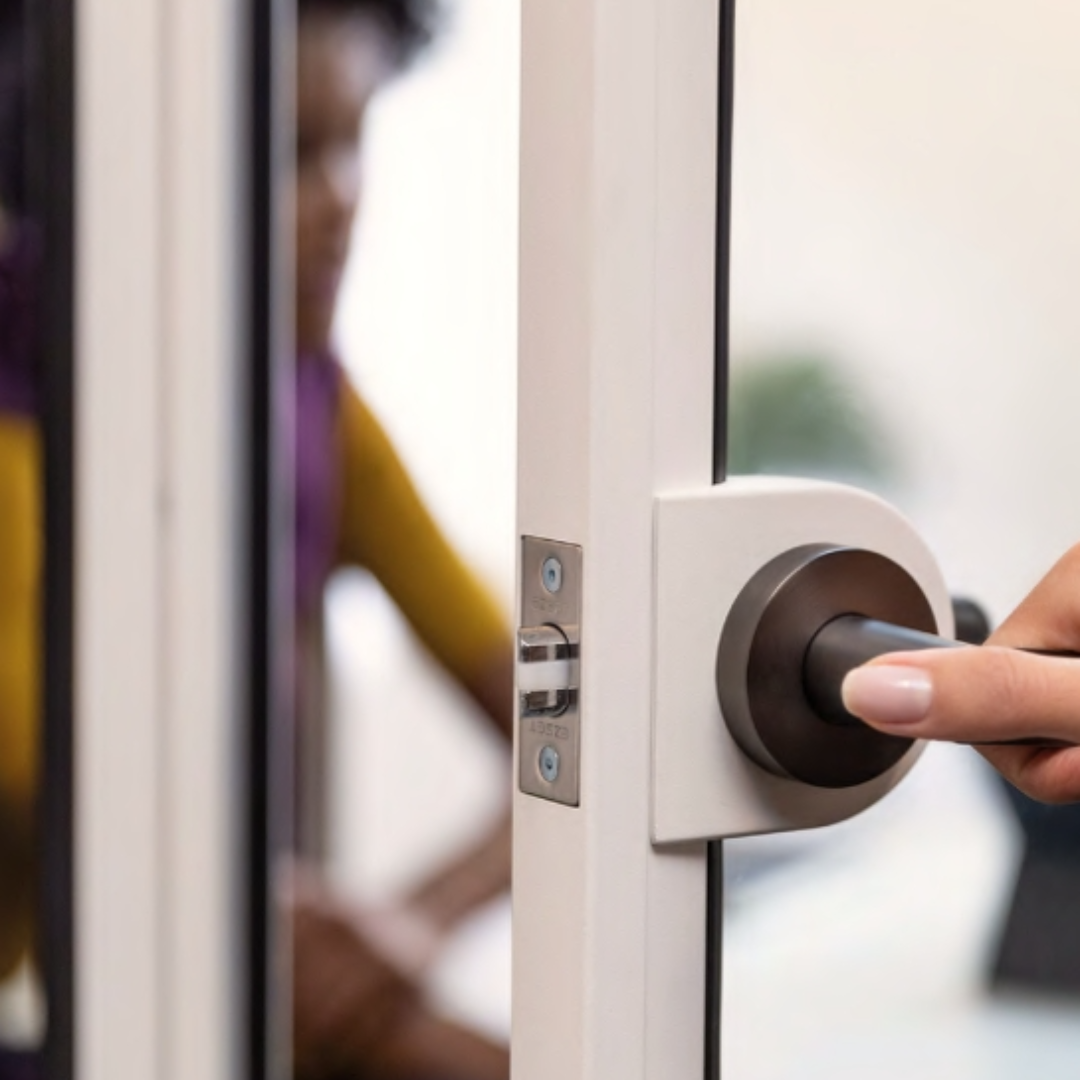

Door: Aluminium acoustic hinge (self-closing) and aluminium handle. The standard orientation is right handed.

Glass: Tempered glass with anti-shatter film

Dampens noise to give you the privacy you need to conduct a focused conversation.

• The acoustic PET used is tested to meet ISO 10534-2 acoustic standards which determines whether a material offers enough sound insulation by measuring sound absorption coefficient percentage between 50 – 6300 Hz.
• Meets ISO 10534-2 acoustic standard. Absorbs an average of 39.1dB

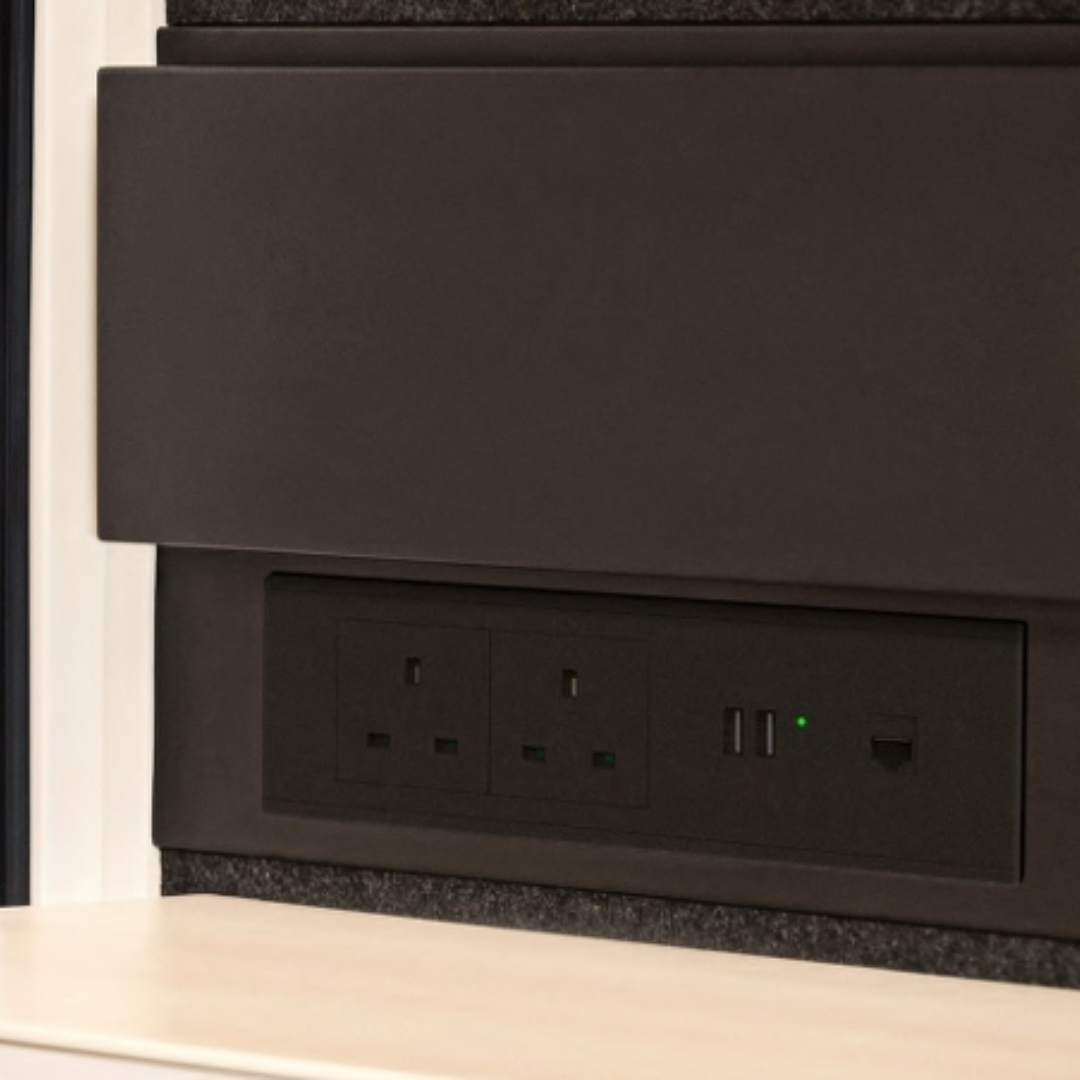

Power Oulets: Koplus Pods are equipped with 2 USB charging and 2 AC power outlets. The power outlet and components are UL, PSE, and CE certified. The standard power and data cables are routed from the bottom. It is also possible to route power and data cables from the top available only upon request. Please contact us for more information. UL rated power outlet and 10 ft power cord. Input: 110-240 VAC, 10.1 A, 50-60 Hz. Output: DC 5V, 2.1A.

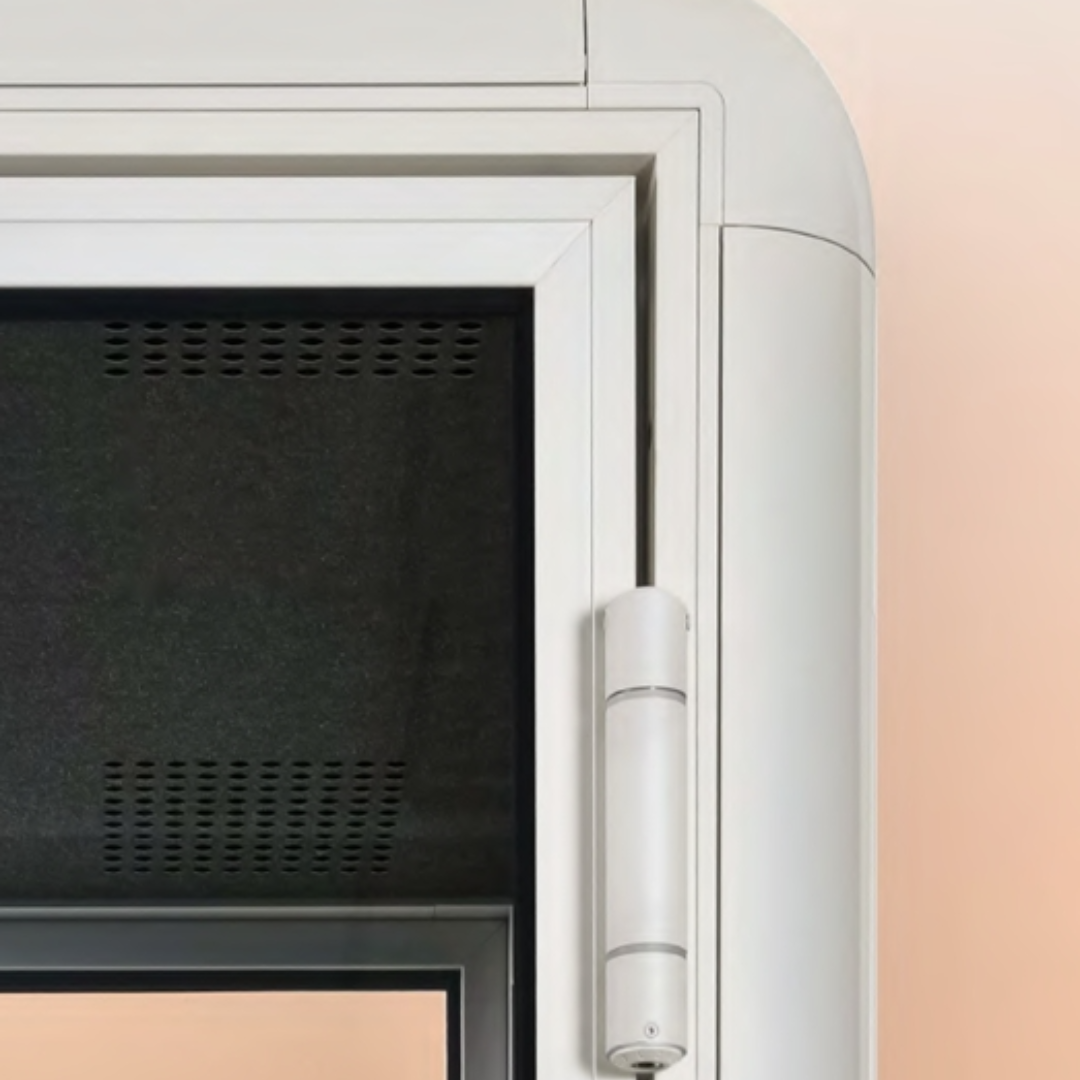

Ventilation: Koplus Duo Pod has 2 ventilation fans. Each fan generates a maximum of 118.2 CFM airflow.

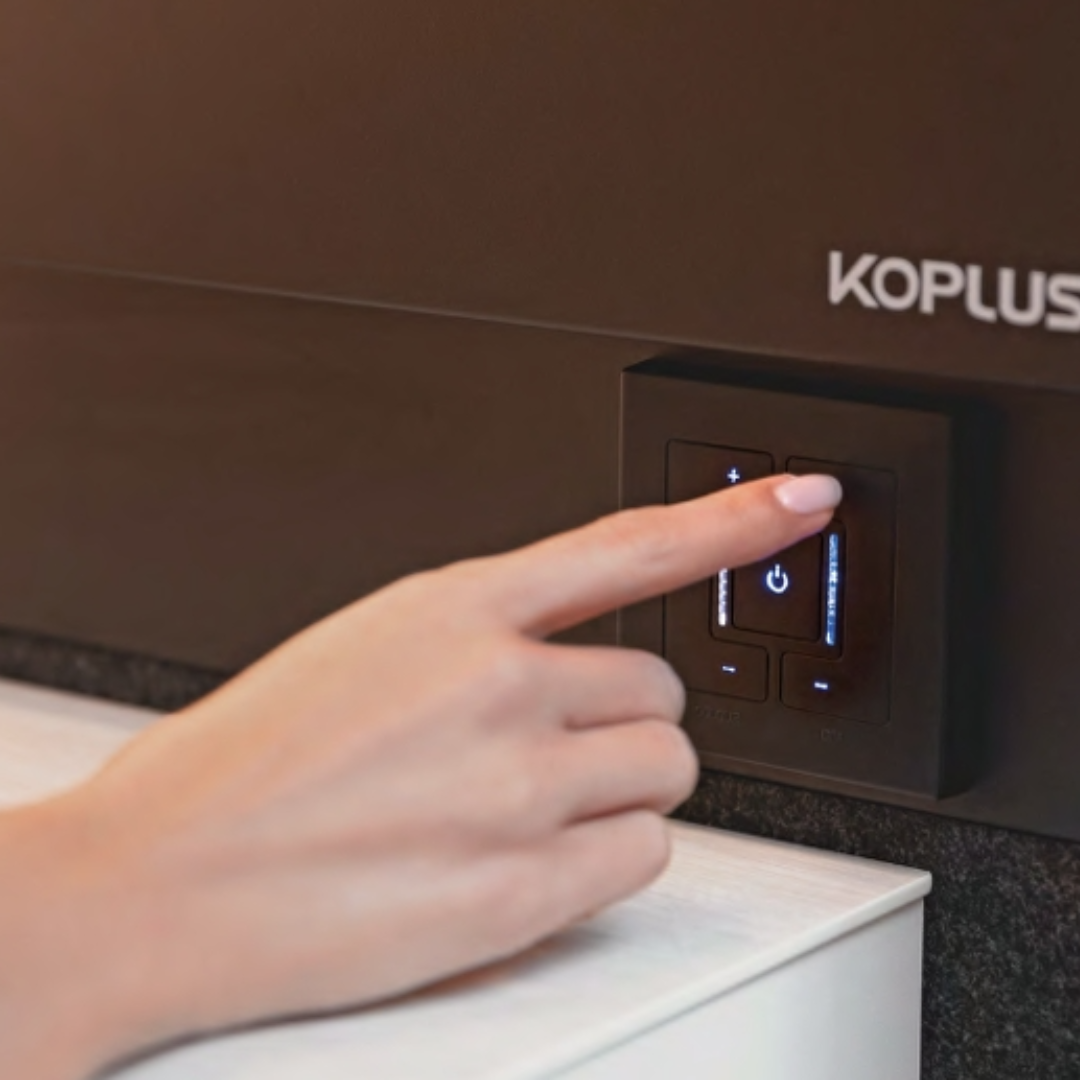

Lighting: The LED lights are installed in the ceiling panel and are activated by motion-sensor when entering the booth. They turn off automatically after 5 minutes of inactivity. The LED lights are dimmable with a maximum brightness of 1800 lumens and the colour temperature can be controlled from a range of 2700-6500K.

Mobility: Duo booths are equipped with levelling feet that can be adjusted to access the rollers for horizontal movement. This feature provides the flexibility to move the booth easily in a workspace when needed.

Extensions: Booth extension units are available on request (can be extended into Duo+ with two units and Duo++ with three units to provide a venue for up to 8 people.)

Warranty: Lifetime warranty based on continuous ownership by original customer. Booth must be installed and/or moved only by qualified/approved Koplus engineers. Excludes electrical components.

Additional extras & furniture available on request:

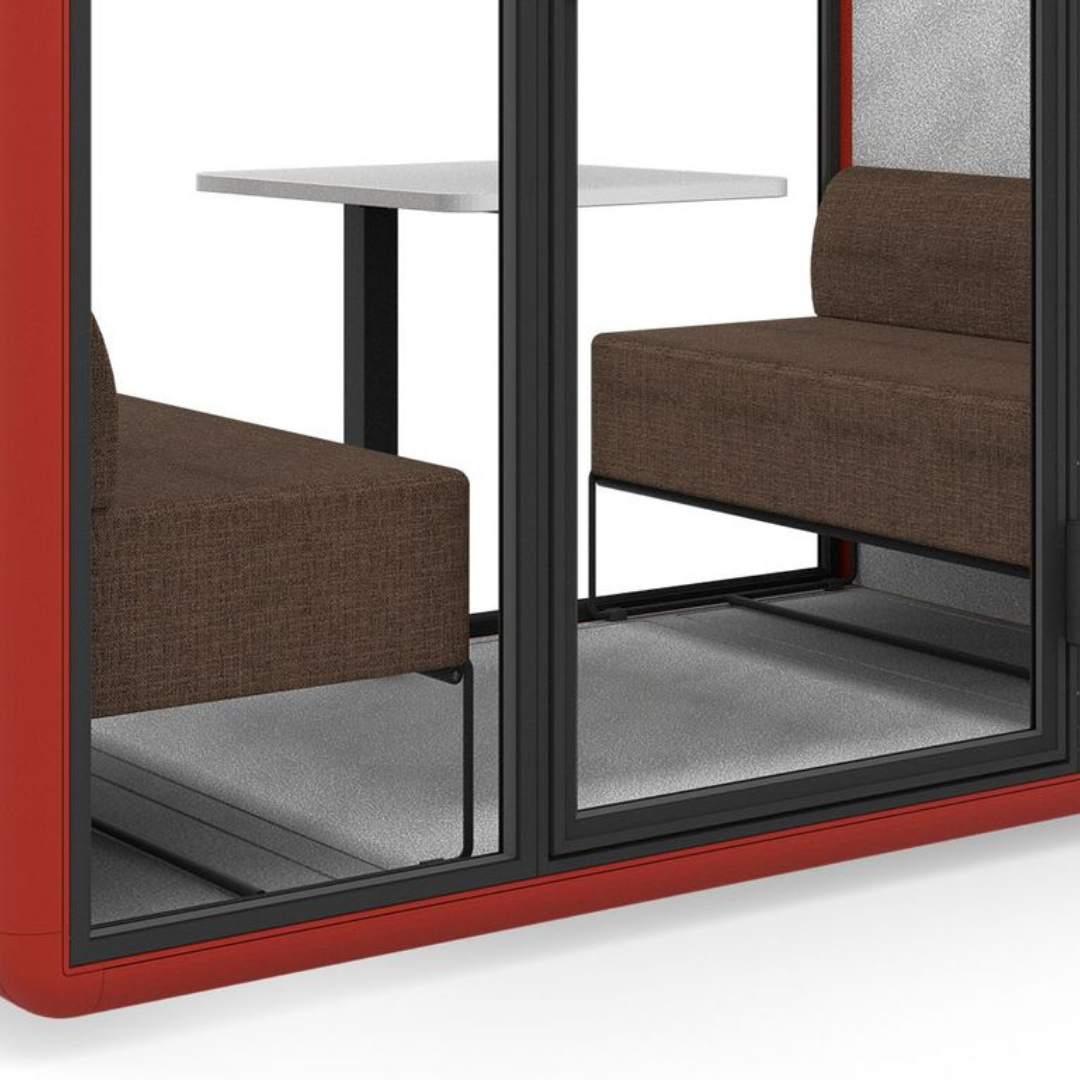

• Discuter Set - 2 Sofa's & Side Table (please see datasheet for more information)
• UV-C Light

• UV-C Light
• Installation

Dimensions of Standard Duo Pod (mm):

Exterior W 2200 x D 1220 x H 2250 | Interior W 2060 x D 1180 x H 2110
