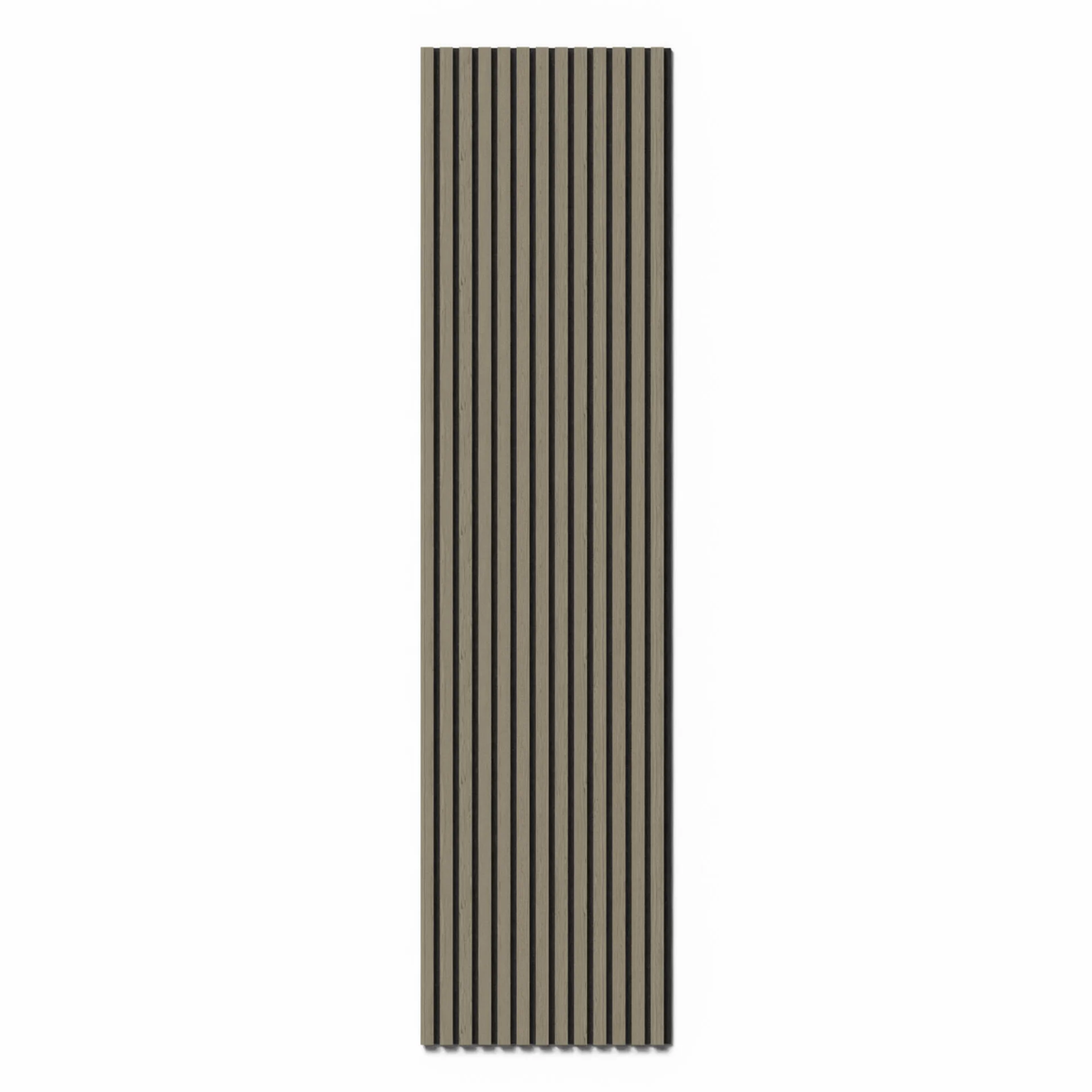

MuffleTimber - Fire Retardant Certified (FRC) | Acoustic Slat Wood Wall Panel

MuffleTimber - Fire Retardant Certified (FRC) | Acoustic Slat Wood Wall Panel

Acoustic solutions don’t need to compromise your interior décor – our acoustic wooden panels are proof of this! MuffleTimber slat wood panels easily create exceptionally aesthetic wood walls that look stylish and modern while providing acoustic benefits. Suitable for both walls and ceilings, these wooden panels will suit almost any contemporary interior.

Our fire-retardant variants keep all of the performance and aesthetic factors of standard MuffleTimber, with the added safety benefits where both sound control and fire resistance are critical factors.

Certified Fire Performance

These panels are tested and classified as B-s1,d0, which means they have:

  • B – Low combustibility
  • s1 – Very limited smoke production
  • d0 – No flaming droplets

This makes them suitable for public buildings, commercial spaces and high-traffic areas where fire regulations are strict.

Spotlight

  • Made from high-quality real wood slats and recycled plastic
  • Offers enhanced interior design
  • Manufactured in Denmark using materials from FSC™ certified forests
  • Easy installation – no heavy-duty equipment required
  • Stylish and modern appearance
  • Reduces reverberation and enhances comfort

Dimensions (mm)

  • 2480 x 600 x 21 | 31/40 mm slats
  • 3000 x 600 x 21 | 31/40 mm slats

Sold per panel / Prices displayed per panel

Please Select a Size...
Please Select a Lamella Width...

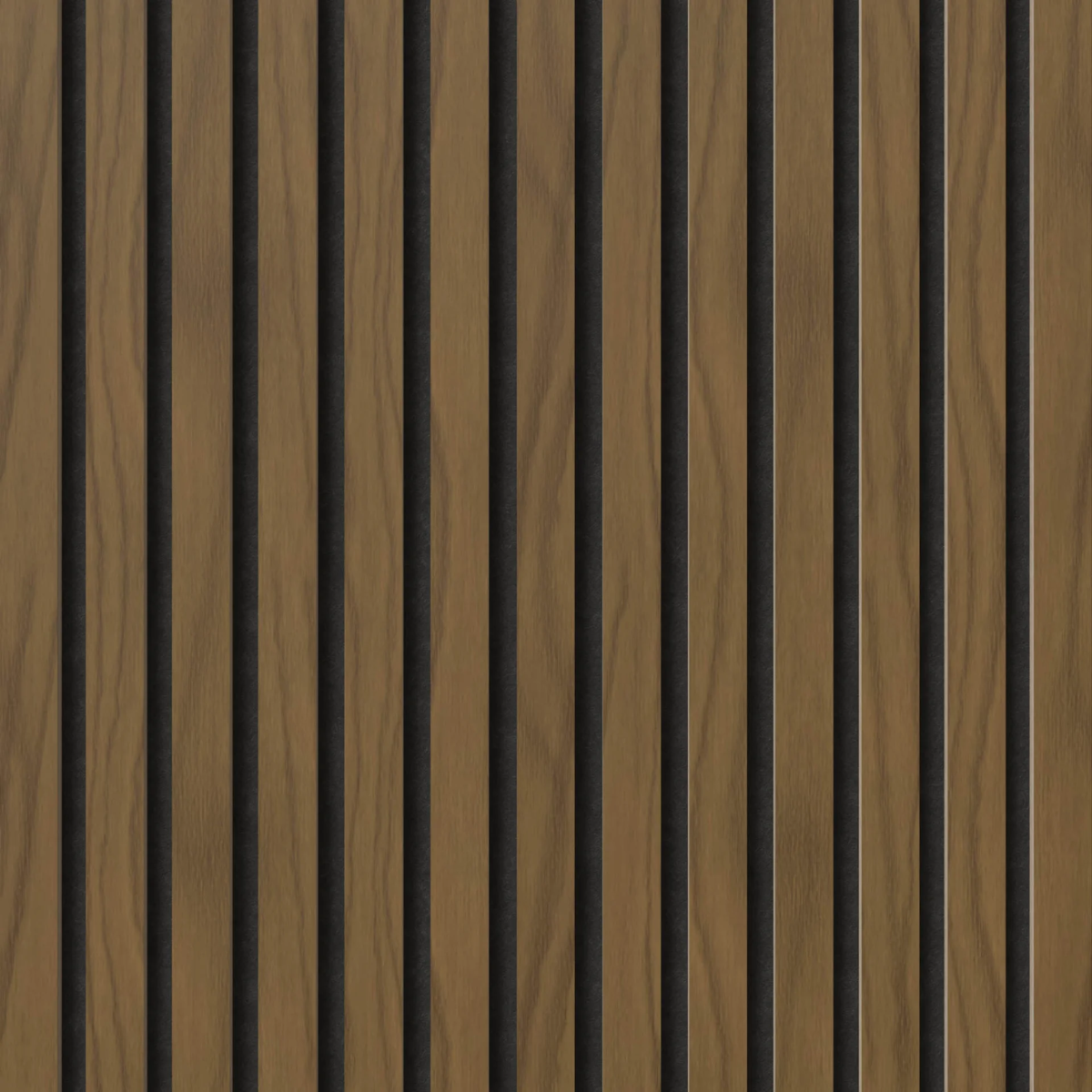

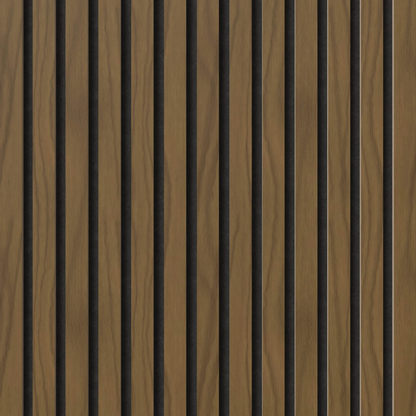

Please Select a Colour...: American Walnut (FR)
£300.00 GBP
£59.98 GBP £300.00 GBP
Sale Sold out
Shipping calculated at checkout.
  • Estimated Delivery: 4-5 Weeks
  • This item is stocked
  • Shipped from Europe

View full details

The specially designed polyester felt is the essence of these fire-resistant acoustic panels, meeting the strictest of requirements according to current EU standards EN 13823 / Class B.

Materials

The Veneer - The surface of the slat is the final finish that defines these acoustic panels, contributes to both matching and creating contrast with the rest of the interior.

The Slat - These are produced from birch plywood. The more angle s sound has to pass through, the more it is reduced. The structure and placement of the slat on the board helps to break the sound waves before they hit the board, which further enhances the sound reduction.

The Felt - Sound moves in waves and is reflected back into the room when it hits hard surfaces. By using a soft felt, the sound passes through the felt and the sound is absorbed, thus reducing the echo in the room.

Dimensions (mm)

The timber slats consist of 12 mm thick Plywood strips which are finished with 0.5 mm veneer, mounted upon 9mm felt backing. Theses slats are either 2480 or 3000 mm long, 600 mm wide, with either a width of 31 mm and a gap of 14.2 mm or a width of 40 mm and a gap of 10 mm between slats.

The maximum tolerance in the panel dimensions is +/- 1 mm.

Installation

Our acoustic wooden panels can be installed using a strong, quality adhesive glue or can be screwed into the wall or ceiling. This makes installation fast and easy. For installations aiming to align slats end-to-end seamlessly, we highly recommend maintaining a 3-5mm shadow gap, whether for walls or ceilings.

Insulation can be used to improve the acoustic performance of your acoustic timber panel.

Images are for illustrative purposes only. Due to the nature of wood veneer, colours may vary slightly.

Product Specification

  • Environmental

    FSC™ Certified C165957

  • Weight

    11.9-17.5 kg

  • Fire Rating

    EN 13823 / b-s1,d0
